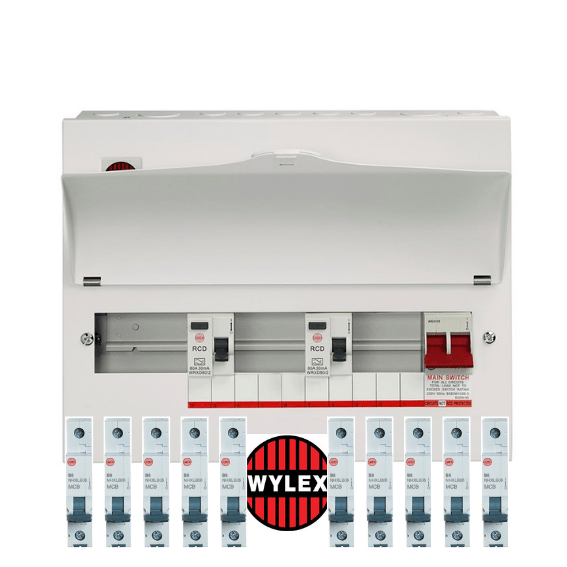

Wylex WNM1770 15-Way High Integrity Dual RCD Consumer Unit, Supplied with 10 MCBs
Product Overview
- 15 Way Flexible configuration as Dual RCD or High Integrity, space for RCBOs.
- 100A Twin Terminal Main Isolator (pre wired and connected) and Surge Protection Device .
- 2 x 80A 30mA Type A RCDs.
- Curved Visor with temporary locking facility.
- Supplied with 10 Type B Miniature Circuit Breakers (3x6A, 2x16A, 5x32A) and 5 blanks
Product Details
| Mounting method | Surface mounted (plaster) |
| Number of phases | 1 |
| Protection | Miniature- / earth leakage circuit breaker |
| Consumer Unit Type | High integrity |
| Total final circuit modular ways | 15 |
| Busbar type | Flexible |
| Main switch rating | 100 A |
| Main switch final circuit modular ways | Flexible |
| RCD 1 | 80A 30mA type A |
| RCD 1 final circuit modular ways | Flexible |
| RCD 2 | 80A 30mA type A |
| RCD 2 final circuit modular ways | Flexible |
| Surge protection device | No |
| Total number of groups | 3 |
| Number of poles main switch | 2 |
| Main switch rated current | 100A |
| Over voltage protection | Yes |
| Material housing | Steel |
| Degree of protection (IP) | IP2XC |
| Height | 261 mm |
| Width | 438 mm |
| Width in number of modular spacings | 21 |
| Depth | 121 mm |
| Extension possible | No |
| With transparent cover | No |
| Lockable | Yes |
| Product Standard/s | BS EN 61439-3 |
| Frequency | 50 Hz |
| CE Conformity | Yes |
| WEEE Symbol | Yes |
| UKCA Conformity | Yes |
| Amperage | 100 A |
| Operating Voltage | 230 V |
| Type of Current | AC |
Specification
Box quantity |
1 |
Consumer unit type |
Hight Integrity |
Depth |
121mm |
Enclosure material |
Metal |
Flexible configuration |
Yes |
Gtin |
5013601108971 |
Height |
261mm |
Internal external |
Internal |
Number of incoming ways |
15 |
Populated |
Partially Populated |
Product type |
Consumer Units |
Width |
438mm |
