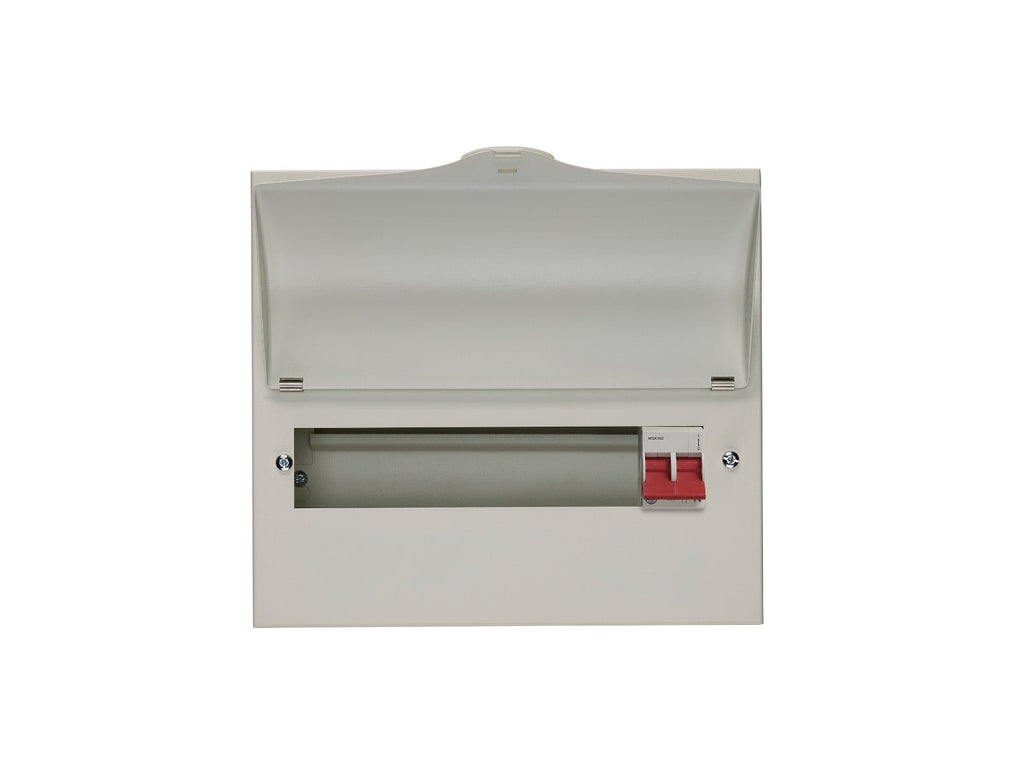

Wylex NM1106L NM Series 11-Way Consumer Unit With 100A Main Switch

Name: Wylex NM1106L NM Series 11-Way Consumer Unit With 100A Main Switch
Brand: Wylex
SKU: NM1106L
Price: 43.896 GBP
Availability: InStock

Wylex NM1106L NM Series 11-Way Consumer Unit With 100A Main Switch - Wylex - Falcon Electrical UK

Roll over image to zoom in Click on image to zoom

Fast Delivery

Wylex NM1106L11-Way Consumer Unit WIth 100A Main Switch

Full Steel enclosure and Lid

100A Double Pole Main Switch

Fixed busbar assembly

Can be populated with a maximum of 11 MCB's or RCBO's

Amendment 3 Compliant

Meets BS EN 61439-3 Standard

Dimensions (HxWxD): 261mm x 292mm x 121mm

Specification

Consumer unit type	Main Switch
Depth	121mm
Enclosure material	Metal
Flexible configuration	No
Gtin	5013601100333
Height	261mm
Internal external	Internal
Number of incoming ways	11
Populated	No
Product type	Consumer Units
Width	292mm

You'll probably need the following items

Wylex D. MCBs
Wylex NHXLB06 6A, 6kA Single Pole Type B MCB £2.03
Wylex NHXLB10 10A, 6kA Single Pole Type B MCB £2.03
Wylex NHXLB16 16A, 6kA Single Pole Type B MCB £2.03
Wylex NHXLB20 20A, 6kA Single Pole Type B MCB £2.03
Wylex NHXLB25 25A, 6kA Single Pole Type B MCB £2.22
Wylex NHXLB32 32A, 6kA Single Pole Type B MCB £2.03
Wylex NHXLB40 40A, 6kA Single Pole Type B MCB £2.03
Wylex NHXLB50 50A, 6kA Single Pole Type B MCB £2.03
Wylex D. RCBOs
Wylex NHXS1B06 6A 30mA SP Swi. Neutral B Curve 6kA Type A Mini. RCBO £14.75
Wylex NHXS1B10 10A 30mA SP Swi. Neutral B Curve 6kA Type A Mini. RCBO £14.75
Wylex NHXS1B16 16A 30mA SP Swi. Neutral B Curve 6kA Type A Mini. RCBO £14.75
Wylex NHXS1B20 20A 30mA SP Swi. Neutral B Curve 6kA Type A Mini. RCBO £14.75
Wylex NHXS1B25 25A 30mA SP Swi. Neutral B Curve 6kA Type A Mini. RCBO £14.75
Wylex NHXS1B32 32A 30mA SP Swi. Neutral B Curve 6kA Type A Mini. RCBO £14.75
Wylex NHXS1B40 40A 30mA SP Swi. Neutral B Curve 6kA Type A Mini. RCBO £14.75
