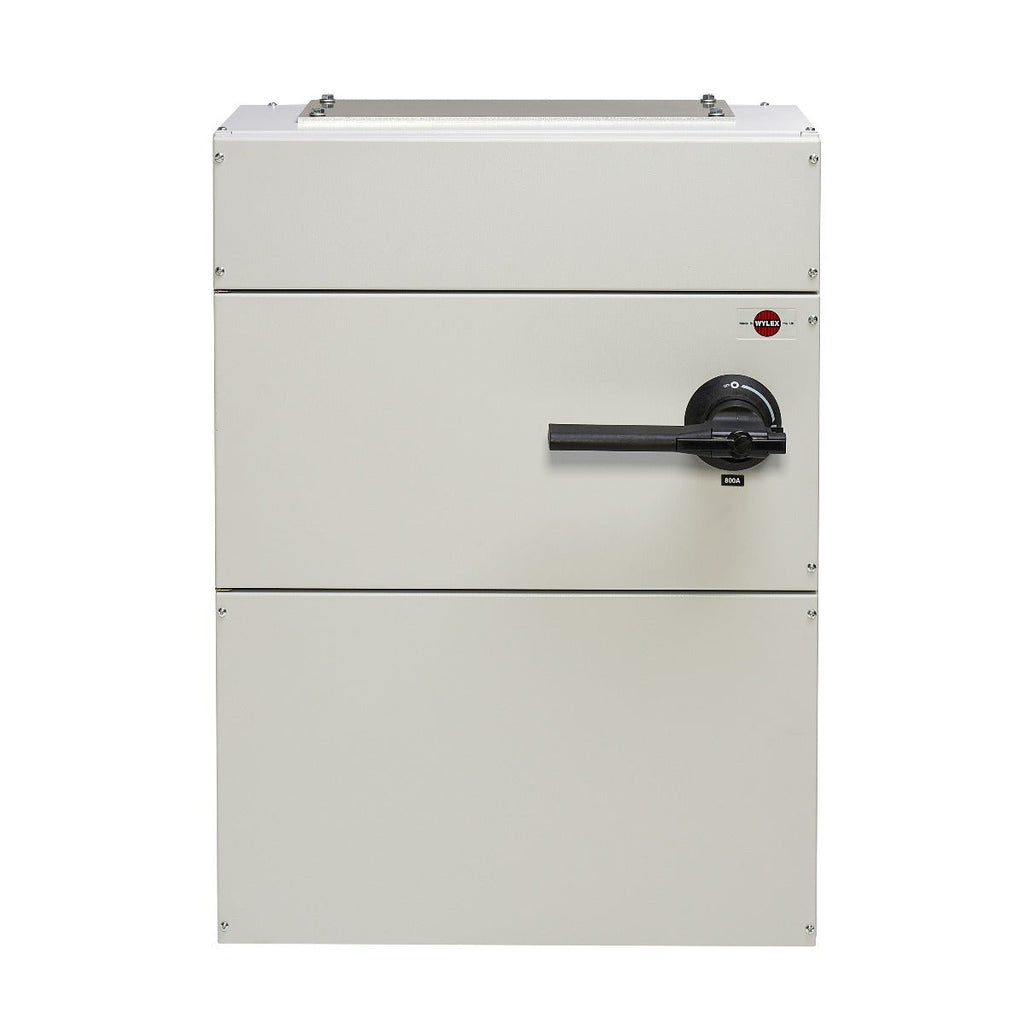

Wylex NHTPSF800 800A 3P+N Fuse Combination Unit
***Please note price is shown includes Pallet charge***
Product Details:
- 800A 3P+N Fuse combination unit
- Supplied without fuses. Switch only.
- Painted RAL 7035 steel enclosure.
- Front door reversible, opening to 180 °
- Operating handle can be padlocked.
- Accommodates cable spreading room up to 630mm ² 4 core.
- Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB5) is required.
- Voltage rating 415V ac
- Frequency rating 50/60 Hz
- Fuse type BS88
- Dimensions (HxWxD): 900mm x 640mm x 293mm
-
Technical details
Mechanical Endurance 10,000 Fused s/c Current kA RMS 80 Ratings A kW 415V le/pe 800 450 Isolator links NHCIL5
Specification
Commercial unit type |
NH Fuse |
Depth |
293mm |
Fuse included |
No |
Gtin |
5013601074474 |
Height |
900mm |
Product type |
Fuse Combination Units |
Regulatory |
BSEN947-3 |
Width |
640mm |
Downloads
Download product data sheets
