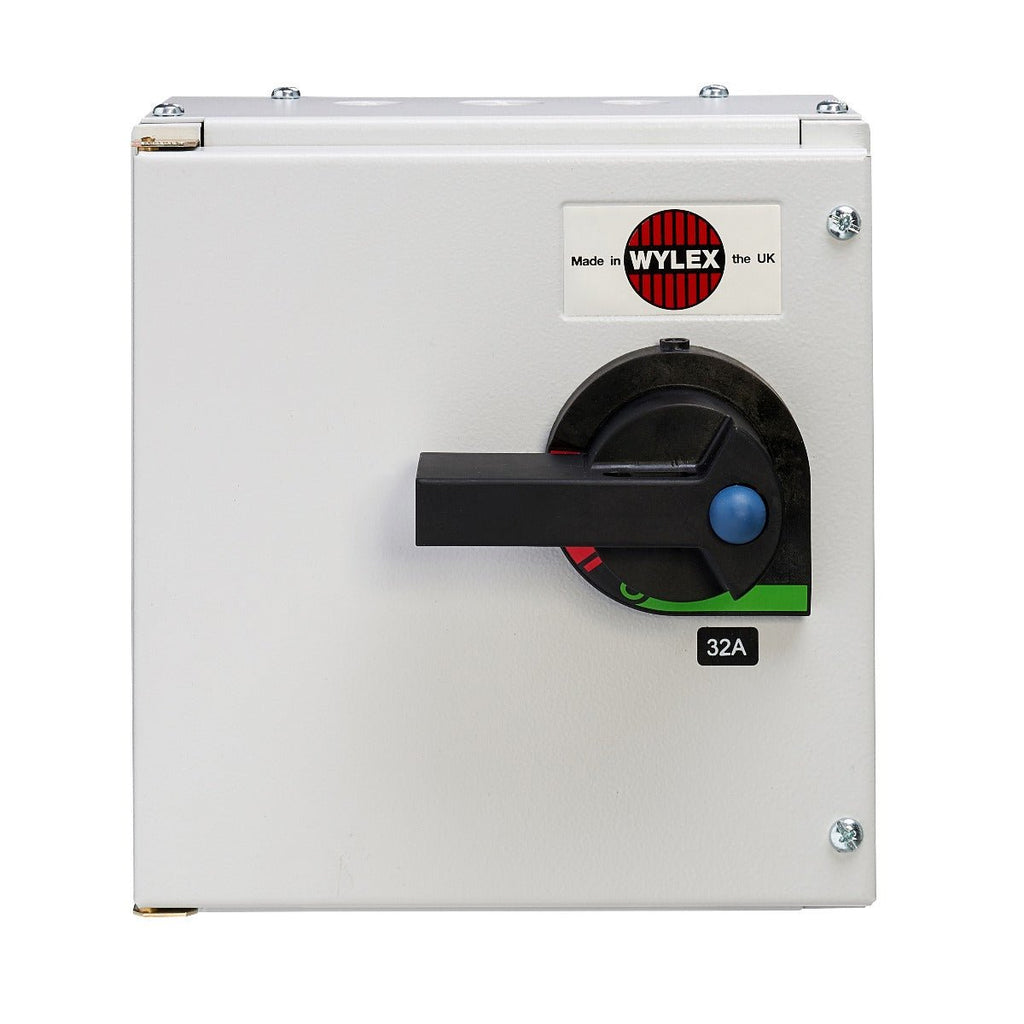

Wylex NHTPSF32 32A 3P+N Fuse Combination Unit c-w Fuses
- 32A 3P+N Fuse combination unit
- Supplied with 32A fuses.
- Painted RAL 7035 steel enclosure.
- Front door reversible, opening to 180 °
- Operating handle can be padlocked
- Voltage rating 415V ac
- Frequency rating 50/60 Hz
- Fuse type BS88
- Dimensions (HxWxD): 225mm x 210mm x 136mm
-
Technical details
Mechanical Endurance 10,000 Fused s/c Current kA RMS 80 Ratings A kW 415V le/pe 32 15
Specification
Commercial unit type |
NH Fuse |
Depth |
136mm |
Fuse included |
Yes |
Gtin |
5013601025568 |
Height |
225mm |
Product type |
Fuse Combination Units |
Regulatory |
BSEN947-3 |
Width |
210mm |
