REPLACED BY THE 1-MODULE SPD NMT2SPD3W-1

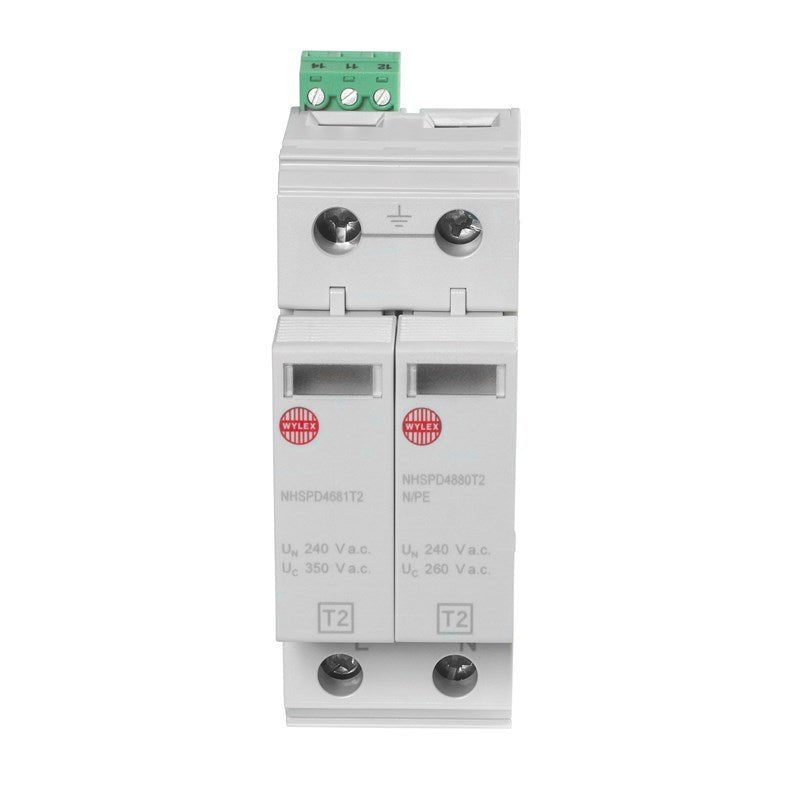

Product Details



• Nominal discharge surge current (8/20): 20 kA



• Nominal voltage AC: 240V



• Short-circuit breaking capacity (Isccr): 25 kA



• Max. continuous voltage AC: 350V



• Max. discharge surge current (8/20): 40 kA



• Mounting method: DIN rail (top hat rail) 35 mm



• Construction size: 2 modular spacings



• Voltage protection level: 1.5 kV



• Max. conductor cross section solid (solid, stranded): 25 mm²



• Voltage protection level L-N: 1.5 kV



• Voltage protection level N-PE: 1.5 kV



• With remote signalling contact: Yes



• Integrated backup fuse: No



• Category type 2: Yes



• Degree of protection (IP): IP20



• Standards: IEC EN 61643-11



• Frequency: 50 Hz



• CE Conformity: Yes



• WEEE Symbol: Yes



• UKCA Conformity: Yes
