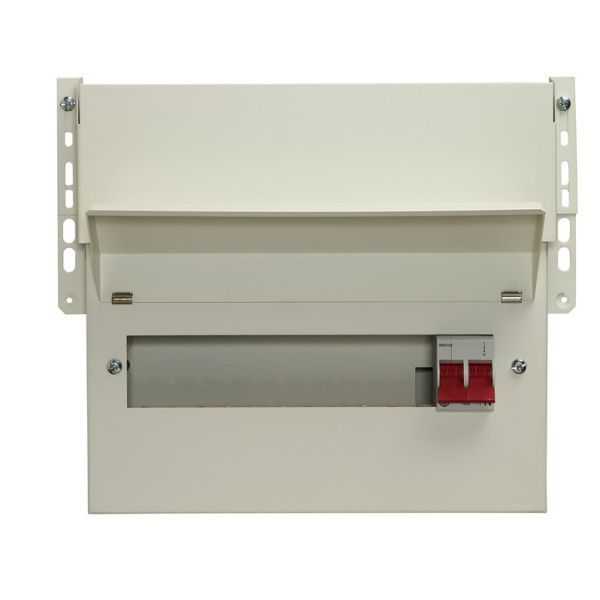

wylex FALNM1106L 11 Way Meter Cabinet Consumer Unit Main Switch 100A
Product Details
- Number of phases: 1
- Protection: Miniature- / earth leakage circuit breaker
- Total number of groups: 1
- Number of poles main switch: 2
- Main switch rated current: 100 A
- Over voltage protection: No
- Material housing: Steel
- Degree of protection (IP): IP2XC
- Product Standard/s: BS EN 61439-3
- Frequency: 50 Hz
- CE Conformity: Yes
- WEEE Symbol: Yes
- UKCA Conformity: Yes
- Amperage: 100 A
- Operating Voltage: 230 V
- Type of Current: AC
- Consumer Unit Type: Main switch only
- Total final circuit modular ways: 11
- Busbar type: Fixed
- Main switch rating: 100 A
- Main switch final circuit modular ways: 11
-

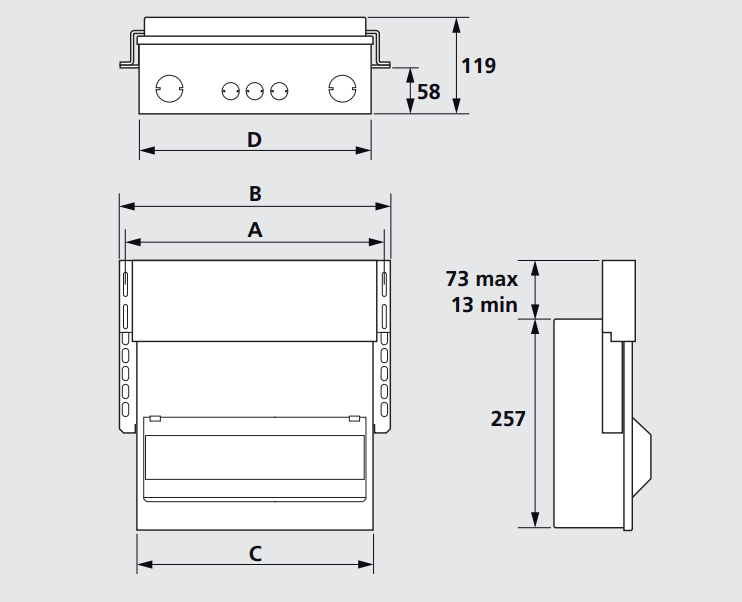

Dimensions (refer to images):
- A = 320mm
- B = 335mm
- C = 292mm
- D = 286mm
Specification
Consumer unit type |
Main Switch |
Enclosure material |
Metal |
Flexible configuration |
No |
Gtin |
5013601104553 |
Internal external |
Internal |
Number of incoming ways |
11 |
Populated |
No |
Product type |
Consumer Units |
