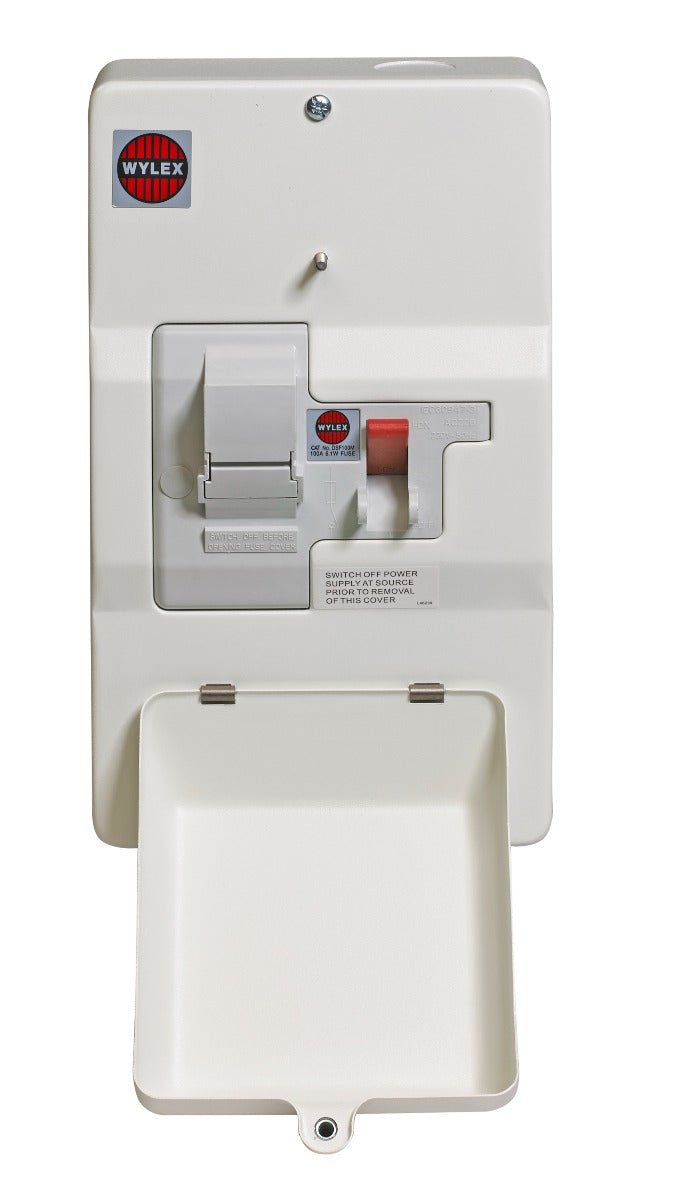

Wylex DSF100M 100A DP, Metal Enclosed, Domestic Switch Fuse with 100A Fuse Fitted
- Domestic switch fuse (cw 100A fuse)
- Double pole
- Lockable switch mechanism
- All metal enclosure 1.0mm thick steel with low smoke & fume Epoxy paint finish
- For the connection of sub mains or system extensions
- 32mm diameter standard knock out for cable gland (top & bottom)
- Live and Neutral cable capacity 16mm ² min 35mm ² max
- 16mm Earth terminating point inside enclosure
- Rotating fuse carrier for easy withdrawal
- Dimensions: (H)302 mm x (W)178 mm x (D)111 mm
Specification
Consumer unit type |
Main Switch |
Gtin |
5013601086774 |
Internal external |
Internal |
Product type |
Isolators and Switch Disconnectors |
