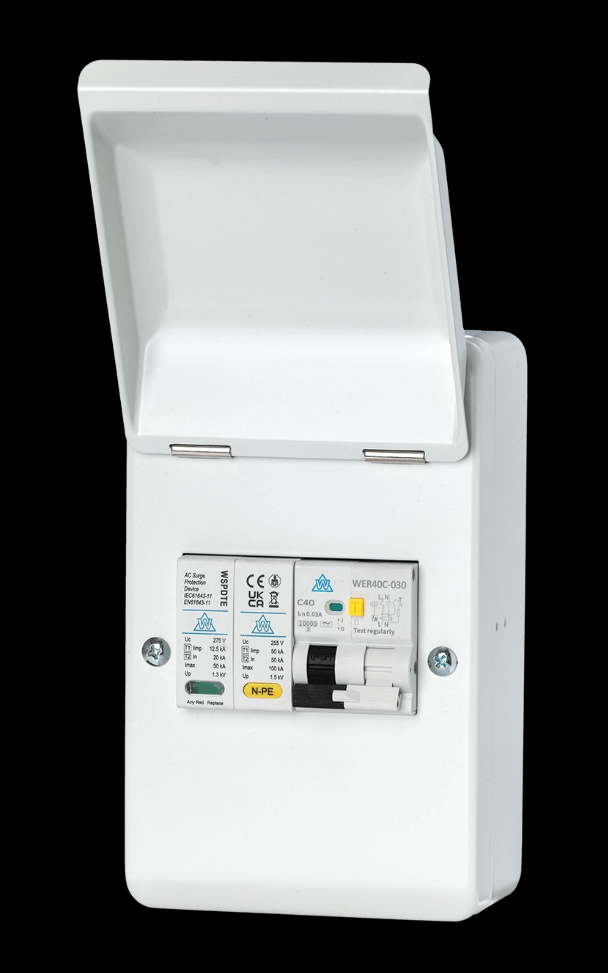

WMRC enclosures are finished in white polyester powder coating. Multiple circular cable entry knock-outs (25&32mm) on the top and bottom. It is ideal for electrical vehicle installations.

Twin handle system for the bi-directional RCBO, black handle controls MCB function, white handle controls RCD function. If only black handle trip off, it indicates overload or short circuit. If both white and black handle trip, it will indicate residual current fault. This will assist electrician to solve the electrical fault quickly, saving time and money.

Technical Details

• Standard: BS EN61439-3, BSEN61009-1, BS EN61643-11

• Number of modules: 4

• Rated Voltage: 230V

• Rated current: according to the rated current of rcbo

• Frequency: 50Hz

• Cable entry: Selection of Knockouts

• Incoming terminal capacity: 35mm²max

• Terminal type: Cage Clamp

• Protection class ip rating: IP40

• Surge protection: Type2

• Visual Indication of Surgeprotection: Green=Good, Red=Replace

• Device mounting: 35mmdin rail

• Ambient temperature: -25 °C ----- +40°C

• Dimensions (HxWxD mm): 175 x 110 x 91
