NOW DISCONTINUED, PLEASE SEE THE WARMUP ELM-01-OB-DC (here)



Product Description

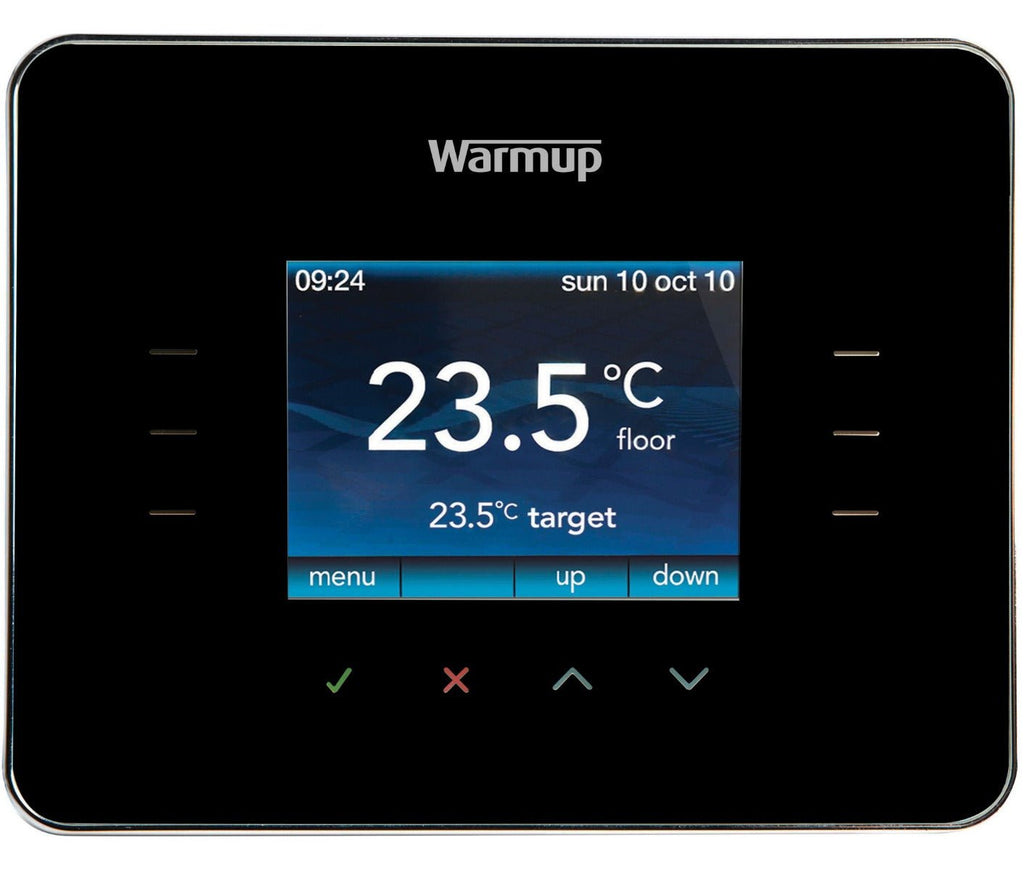

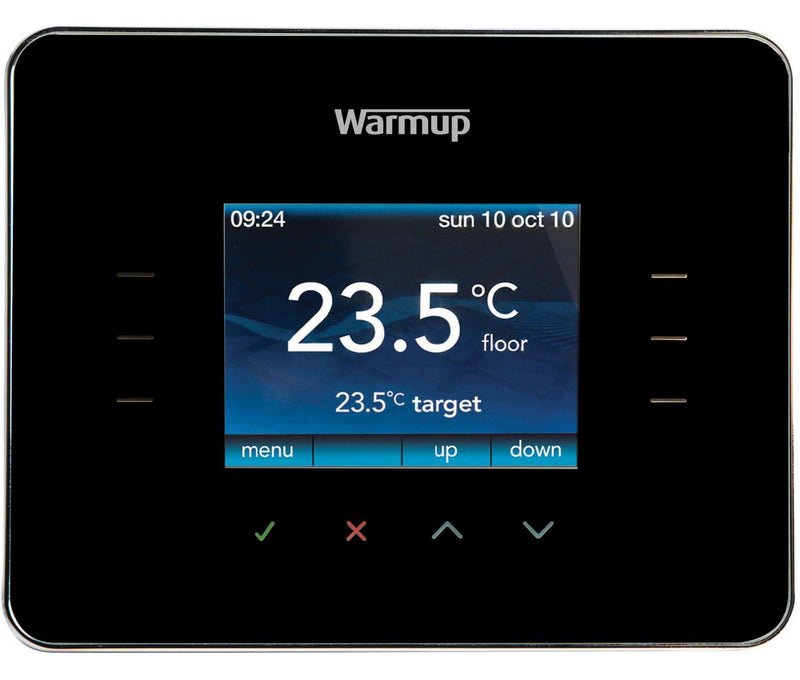

The 3iE is an easy-tou-use underfloor heating controller that gives you the ability to set up to 10 different heating schedules per day, so you can accurately control usage for all rooms.

The 3iE’s self-learning capability means it can tell you when to turn the power on to achieve the desired temperature at the chosen time and its Proportional Adaptive Function precisely activates the system when needed, perfectly balancing comfort with economy.



Other features include:

• Active Energy Management™ prompts user to save up to 10% on utility bills



• Easy-to-use interface eliminates complicated manuals



• Unrivalled accurate floor temperature control of +/- 0.5°C, significantly reduces energy wastage



• 10 programmable periods per day for efficient energy usage



• Stylish range of colours to suit any decor



• BEAB Approved and CE marked meeting the highest safety standards for ultimate piece of mind





Product Details

Input Voltage:	230v +/- 15% At 50hz
Max Load:	16a (3680w)
Dimensions (H/W/D):	90 X 113 X 19mm (From Wall)
Sensors:	Air & Floor (Ambient)
Sensor Type:	Ntc10k 3m Long (Can Be Extended To 50m)
Ip Rating:	Ip20/(Ip 32 With Optional Gasket)
Installation Depth:	35mm Back Box
Display Size:	2.4” Full Colour
Compatibility:	Ideal For Electric & Hydronic Underfloor Heating
Er-P Class:	IV
