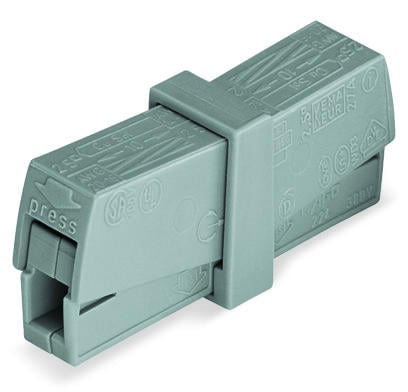

Wago Connector Service 2.5mm Grey (224-201) - Box of 50
Product Details
- Ratings per: EN 60664
- Nominal voltage: (II/2) 400 V
- Rated surge voltage: (II/2) 4 kV
- Rated current: 24A
- Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
- Connection technology: CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.5 … 2.5 mm² / 20 … 16 AWG
- Fine-stranded conductor: 0.5 … 2.5 mm² / 20 … 16 AWG
-

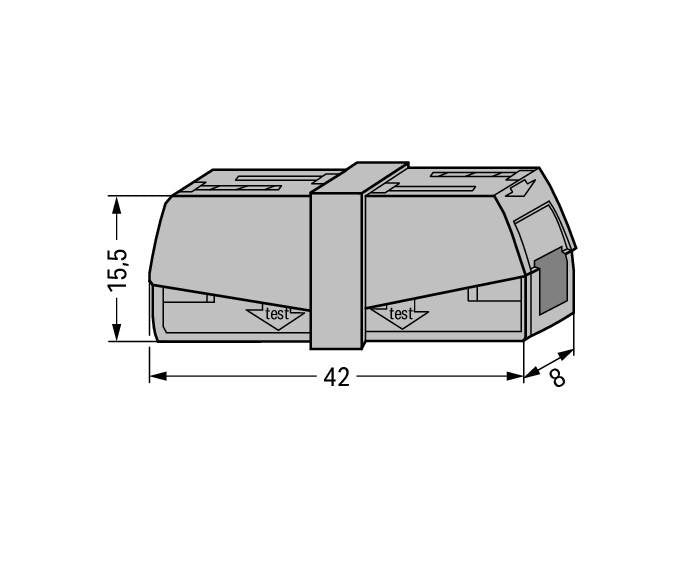

Dimensions:
- Width: 8 mm / 0.315 inch
- Height: 15.5 mm / 0.61 inch
- Depth: 42 mm / 1.654 inch
- Color: gray
- Fire load: 0.099 MJ
- Weight: 4.6g
Specification
Box quantity |
50 |
Connector type |
Push |
Number of incoming ways |
1 |
Product type |
Connectors |
