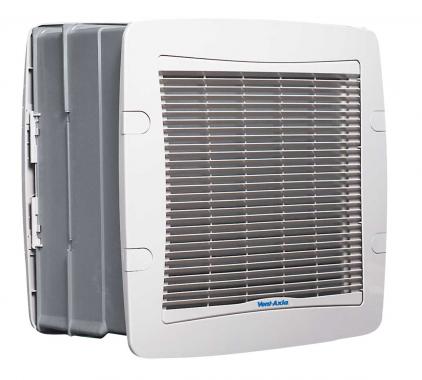

Vent Axia TX9WL T-Series 9 Inch Wall Fan
- Extract/intake model 9 inch
- Designed to fit through most wall thicknesses using the suppled telescopic liners. Additional liners are available to accommodate exceptionally thick brick walls
- Speed control pack which enabling high, medium or low speed options
- Patented electronic shutter system ensures quiet, trouble free operation
- For the very best from your fan use the Ecotronic controller
- Easy fit connector top socket- standard on all models for fast and trouble-free mains connection
- A T-Series controller may be used to obtain a choice of speeds, reversible air flow direction and automatic sensor operation
- Motor purpose-designed. Suitable for running at any angle. Quiet running, enclosed
- Suitable for operation in ambient temperatures from -40 ͦ C to +50 ͦ C
- Fitted with Standard Thermal Overload Protection (S.T.O.P.)
- Supply voltage 220-240V/1/50Hz
| Extraction rate l/s (m ³/h) | Min | 515 (143) |
| Med | 755 (210) | |
| Max | 870 (241) | |
| Power (watts): | 85 | |
| Sound dB(A) @ 3m: | 43 | |
| Amps @ 240V: | 0.42 | |
Specification
Control type |
Standard |
Depth |
25mm |
Enclosure material |
Plastic |
Fan type |
Axial |
Gtin |
5015135426309 |
Height |
388mm |
Internal external |
Internal |
Mounting options |
Wall |
Product type |
Ventilation |
Width |
391mm |
