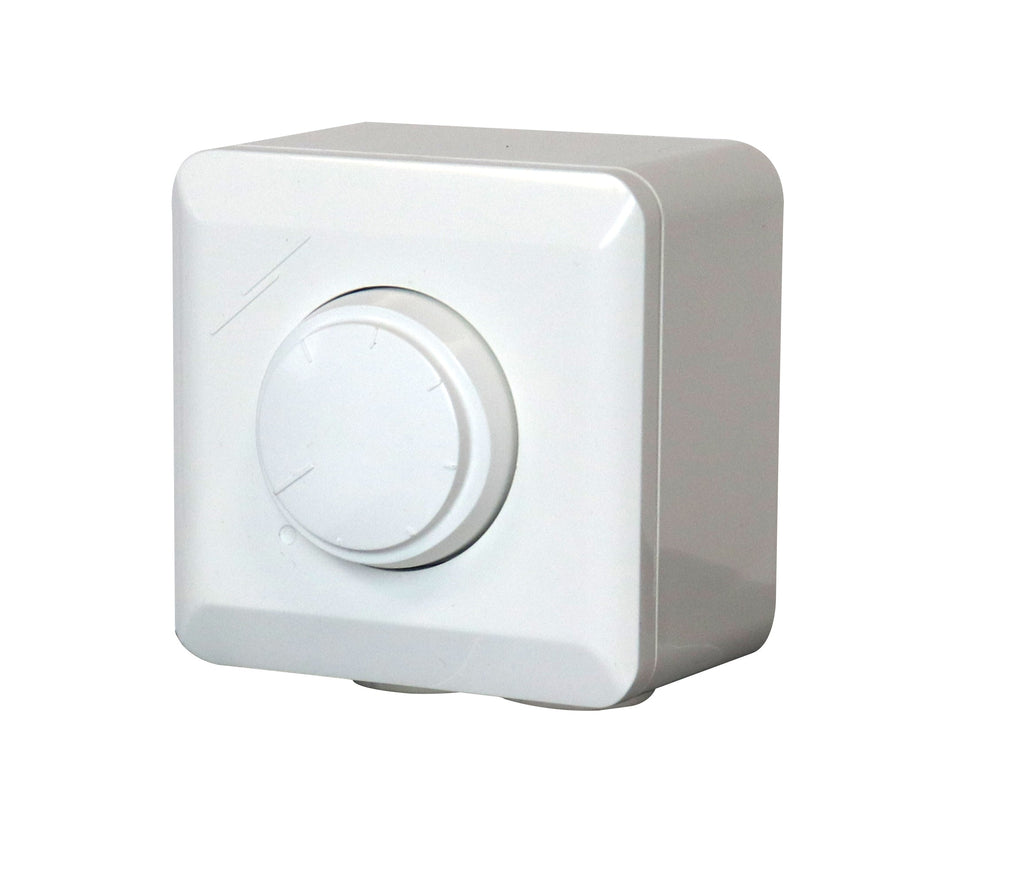

Vent-Axia SC5001 Speed Controller
The SC5001 range of electronic infinitely variable fan speed controllers allow you to manually adjust the speed of single phase AC fans by varying the motor voltage through phase angle control. Maximum current rating 1.5 Amps Infinitely variable speed control
- Surface mount (SC flush mountable)
- Automatic supply voltage detection
- Adjustable stepless output voltage
- 230 VAC alarm output
- TK monitoring for thermal motor protection (SCTK range)
- Contacts for remote on/off switching
- Adjustable minimum and maximum speed limits
- Kick start (default) or soft start
- Run and fault detection LED indication (SCTK range)
Specification
Depth |
71mm |
Enclosure material |
Plastic |
Height |
86mm |
Internal external |
Internal |
Mounting options |
Wall |
Product type |
Ventilation |
Width |
86mm |
