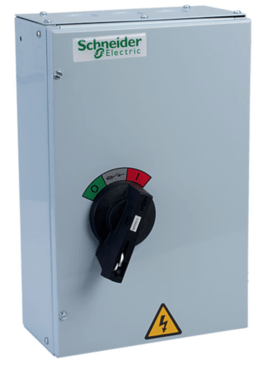

Product Description

Application

Heavy duty fuse products for use in commercial and industrial environments, providing isolation and traditional fuse protection for electrical loads.

Features

• Rated for 240/415V 50/60Hz

• Degree of protection: IP41

• Handle position provides positive contact indication

• Door handle prevents door being opened when switch is ON or padlocked

• Handle padlockable in ON and OFF positions

• Fuse links supplied as standard

Construction

• Live terminals fully shrouded

• Door interlock has integral defeat mechanism allowing door to be opened without switching OFF.
  This feature is not operable when the handle is padlocked

• Removable gland plates with cable knockouts

• Lift off door provides greater access for installation and cabling

• Door opens within the width of the unit allowing units to be mounted adjacent

• Neutral has disconnectable link and capacity for 3 outgoing cables

• Keyhole slots in the enclosure base allow easy installation

• Earthing kit provided as standard

• Easy access to fuse links

• Steelwork finished in polyester epoxy powder

Product Details

• Standard: BS EN 60947-3


• Rated operational voltage: 415V 50/60Hz

• Rating: 32A

• Rated current at 400C, A: 32

• Rated impulse voltage: 6kV

• Rated short time withstand Icw, A: 416

• Rated short circuit making capacity Icm: 1.35kA

• Rated short circuit breaking capacity Icn: 50kA

• Kilowatt rating: 15kW

• Cable size, maximum mm ²: 10mm ²
