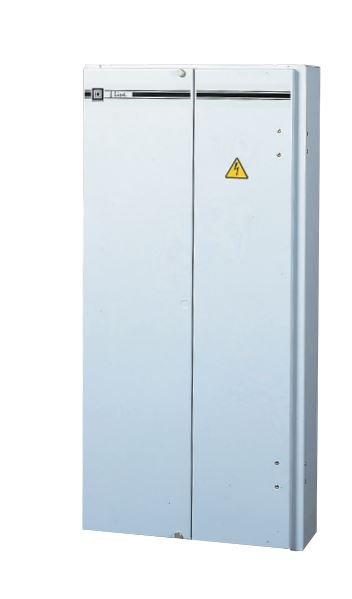

Schneider Electric MP250121 36 Module, 250A I-Line MCCB PanelBoards
Product Details
- Dimensions (HxWxD): 1727 x 508 x 184mm
- Weight: 76kg
- Current Rating: 250A
- Triple Pole Ways: 12
- Single Pole Ways: 3
- Standards: BS EN 60439
- Single sided to give best possible space utilisation
- Incomers can be mounted at top or bottom of the panelboard
- Ample cabling space
- I-line busbar system
- Degree of protection IP3X
- Hinged lift off cable way cover
- Fully rated earth and neutral bars
- Removable top and bottom gland plates
- Busbar rating 50ka for 1s
Specification
Depth |
184mm |
Dis board amps |
250A |
Dis board type |
Triple Pole |
Gtin |
5018934693712 |
Height |
1727mm |
Product type |
Commercial PanelBoards |
Single pole ways |
3 |
Triple pole ways |
12 |
Width |
508mm |
