Product Details

• Range: Acti 9

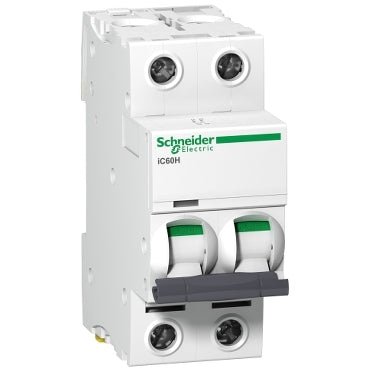

• Product name: Disbo iC60

• Product or component type: Miniature circuit-breaker

• Device short name: IC60H

• Poles description: 2P

• Number of protected poles: 2

• [In] rated current: 50 A

• Network type: AC

• Trip unit technology: Thermal-magnetic

• Curve code: D

• [Ue] rated operational voltage: 440 V AC 50/60 Hz

• Magnetic tripping limit: 12 x In +/- 20 %

• Mounting mode: Clip-on

• Mounting support: Rail

• 9 mm pitches: 4

• Height: 85 mm
• Width: 36 mm
• Depth: 78.5 mm

• Net weight: 0.25 kg

• Mechanical durability 20000 cycles

• Electrical durability: 10000 cycles

• Provision for padlocking: Padlockable

• IP degree of protection: IP20 conforming to IEC 60529
