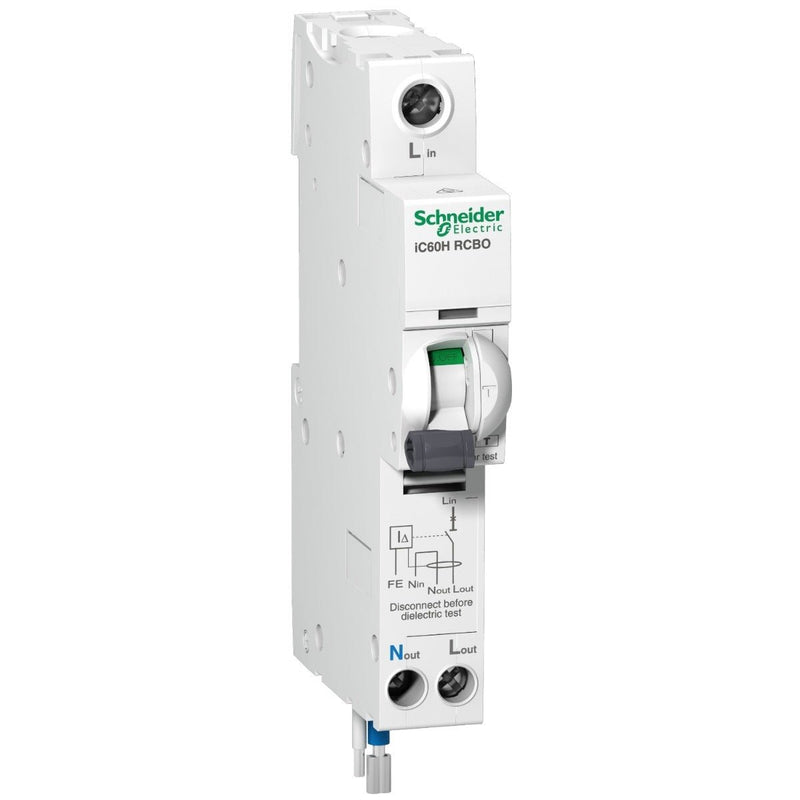

Product details

• Poles description: 1P + N

• [in] rated current: 45A

• Earthing system: TN

• Curve code: C

• Earth-leakage sensitivity: 30 MA

• Breaking capacity: 10000 a icn at 230/240 v ac 50/60 hz

• Neutral position: left

• Number of protected poles: 1

• Device location in system: outgoer

• Network frequency: 50 hz

• Network type: AC

• Trip unit technology: thermal-magnetic

• [ue] rated operational voltage: 230/240 v ac 50/60 hz

• Residual current tripping technology: voltage dependent

• Earth-leakage protection time delay: instantaneous

• Earth-leakage protection class: Type A

• [icw] rated short-time withstand current: icw: 250 a during 8/20 µs impulse withstand

• [ics] rated service breaking capacity: 7500 a at 230/240 v ac 50/60 hz

• Limitation class: 3

• [ui] rated insulation voltage: 400 v ac 50/60 hz

• [uimp] rated impulse withstand voltage: 4 kv

• Surge current: 250A

• Suitability for isolation: yes

• Contact position indicator: yes

• Control type: toggle

• Local signalling: on/off indication

• Mounting mode: clip-on

• Mounting support: din rail

• Comb busbar and distribution block compatibility: no

• 9 mm pitches: 2

• Height: 110 mm
• Width: 18 mm
• Depth: 77.5 mm

• Net weight: 205 g

• Colour: white

• Mechanical durability: 20000 cycles

• Electrical durability: 5000 cycles

• Provision for padlocking: padlockable with padlock ø 4 mm

• Standards: iec 61009-1
  • As/nzs 61009.1
  • Iec 61009-2-2
  • Bs en 61009-1

• IP degree of protection: IP20
