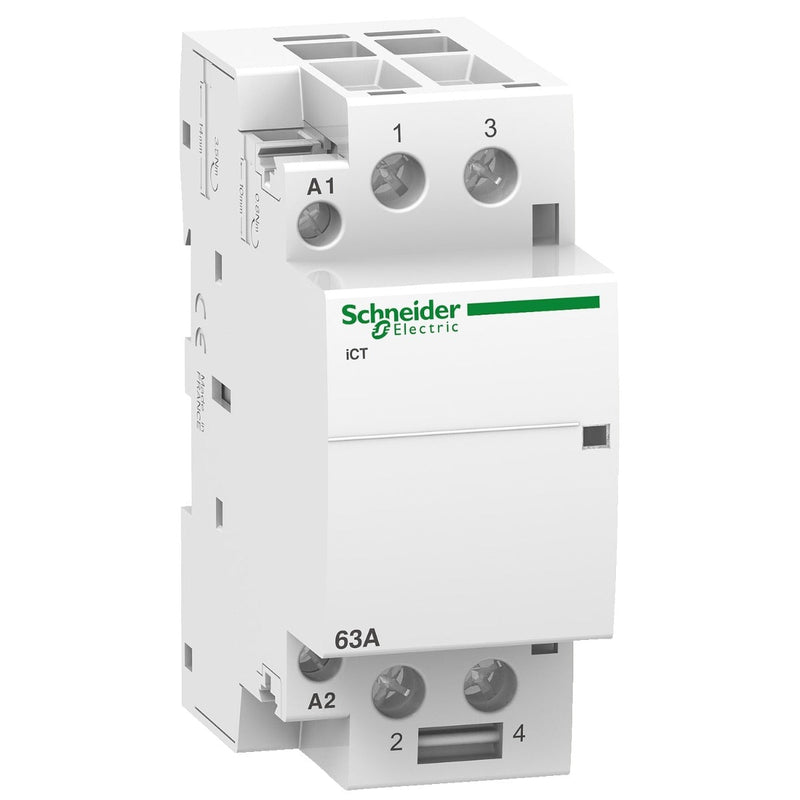

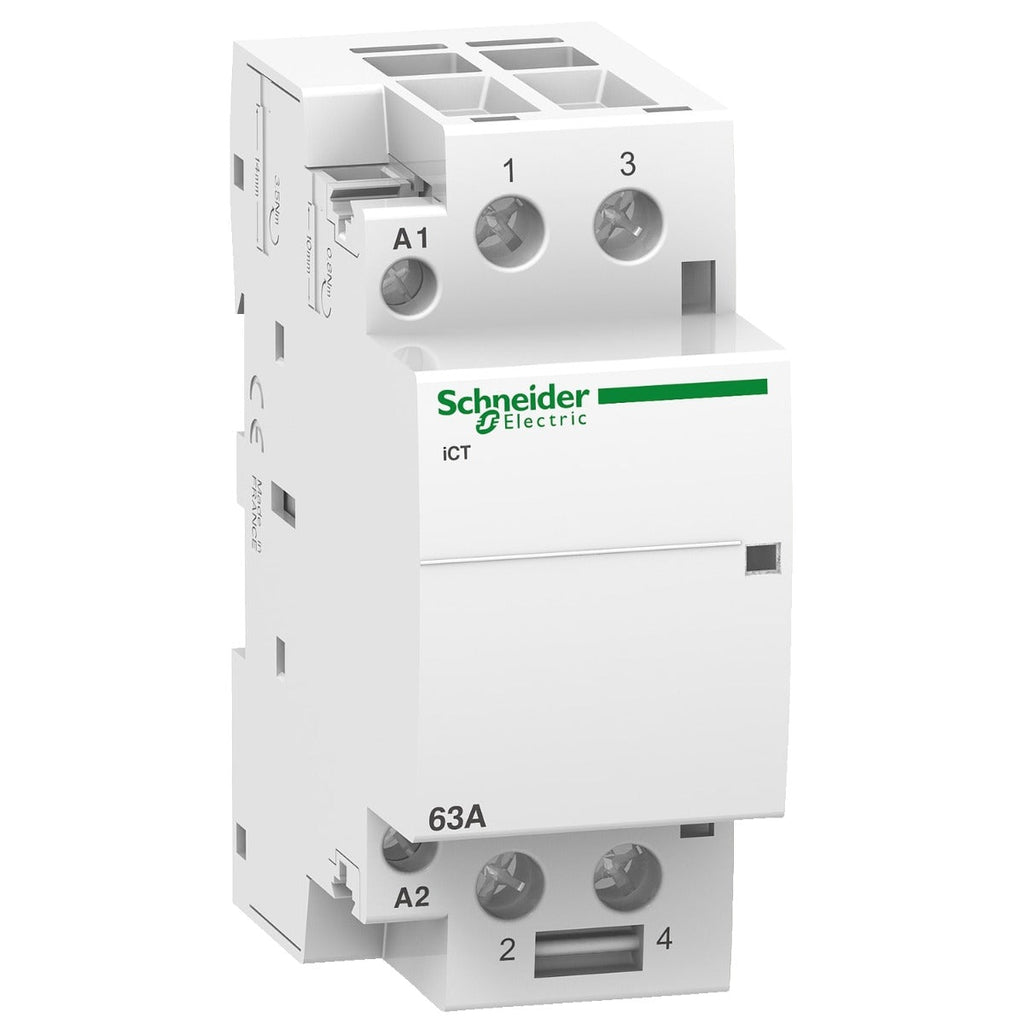

Product Details

• Poles: 2P

• [Ie] rated operational current:

  • 63 A AC-7A
  • 20 A AC-7B

• Pole contact composition: 2 NO

• Network type: AC

• Control type: Remote control

• [Uc] control circuit voltage: 24 V AC 50 Hz

• Network frequency: 50 Hz

• [Ue] rated operational voltage: 250 V AC 50 Hz

• Maximum power: 1.6 W at 250 V AC

• [Ui] rated insulation voltage: 500 V AC 50/60 Hz

• [Uimp] rated impulse withstand voltage: 4 kV

• Control signal type: Maintained

• Switching frequency: 100 switching operations/day

• Local signalling: Action indicator

• Hold-in power consumption in VA: 4.6 VA

• Inrush power in VA: 34 VA

• Mounting mode: Clip-on

• Mounting support: 35 mm symmetrical DIN rail

• 9 mm pitches: 4

• Height: 85 mm
• Width: 36 mm
• Depth: 68.5 mm

• Standards: IEC/EN 61095


• Noise level: 30 dB


• Heat dissipation: 1.6 W at 50/60 Hz


• IP degree of protection:

  • IP20 conforming to IEC 60529

  • IP40 (modular enclosure) conforming to IEC 60529
