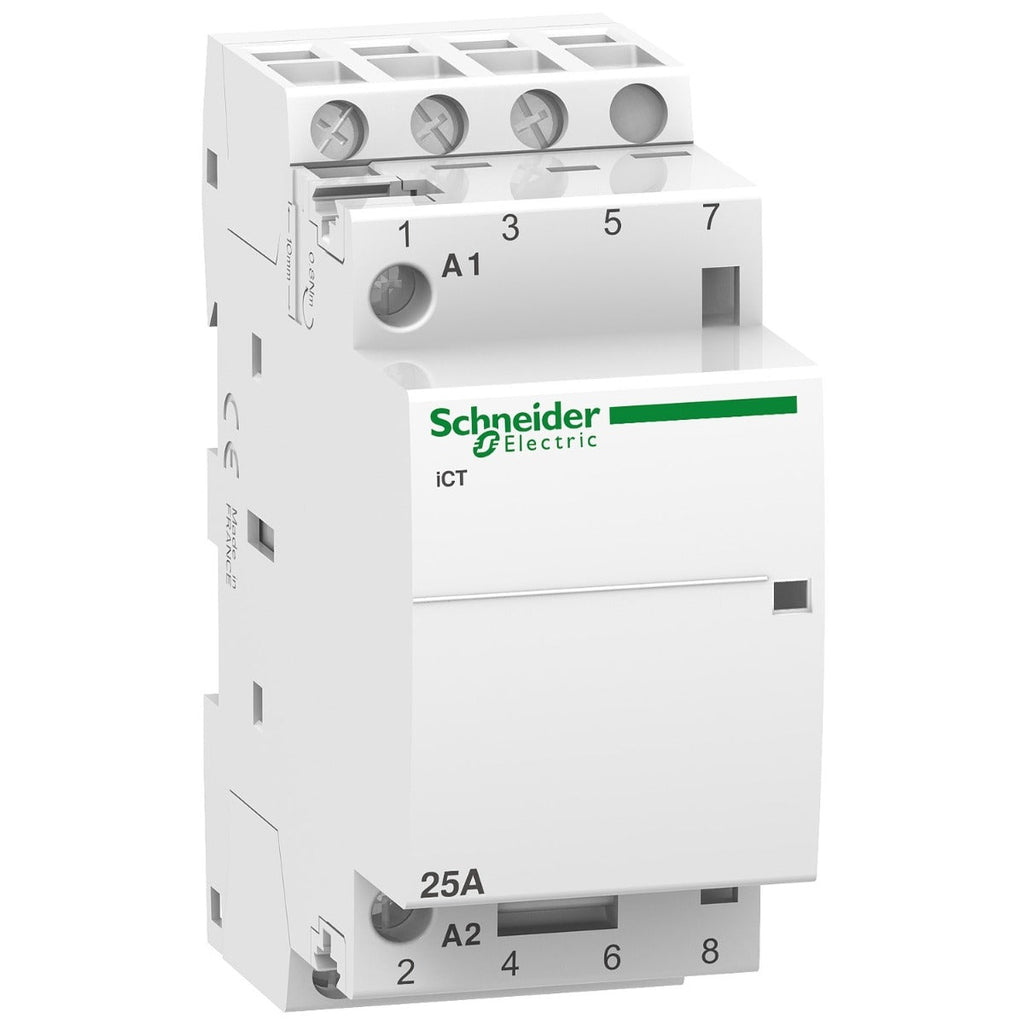

Product Details

• Poles description: 4P

• Pole contact composition: 4 NO

• Network type: AC

• [Ie] rated operational current:
• 25 A AC-7A
• 8.5 A AC-7B

• control type: Remote

• [Uc] control circuit voltage: 24 V AC 50 Hz

• network frequency: 50 Hz

• [Ue] rated operational voltage: 400 V AC 50 Hz

• maximum power: 1.6 W at 400 V AC

• [Ui] rated insulation voltage: 500 V AC 50/60 Hz

• [Uimp] rated impulse withstand voltage: 4 kV

• control signal type: Maintained

• switching frequency: 100 switching operations/day

• local signalling: Action indicator

• hold-in power consumption in VA: 4.6 VA

• inrush power in VA: 34 VA

• mounting mode: Clip-on

• mounting support: 35 mm symmetrical DIN rail

• 9 mm pitches: 4

• height: 81 mm
• width: 36 mm
• depth: 6 mm

• standards: IEC/EN 61095

• noise level: 30 dB

• heat dissipation: 1.6 W at 50/60 Hz

• IP degree of protection: IP20
