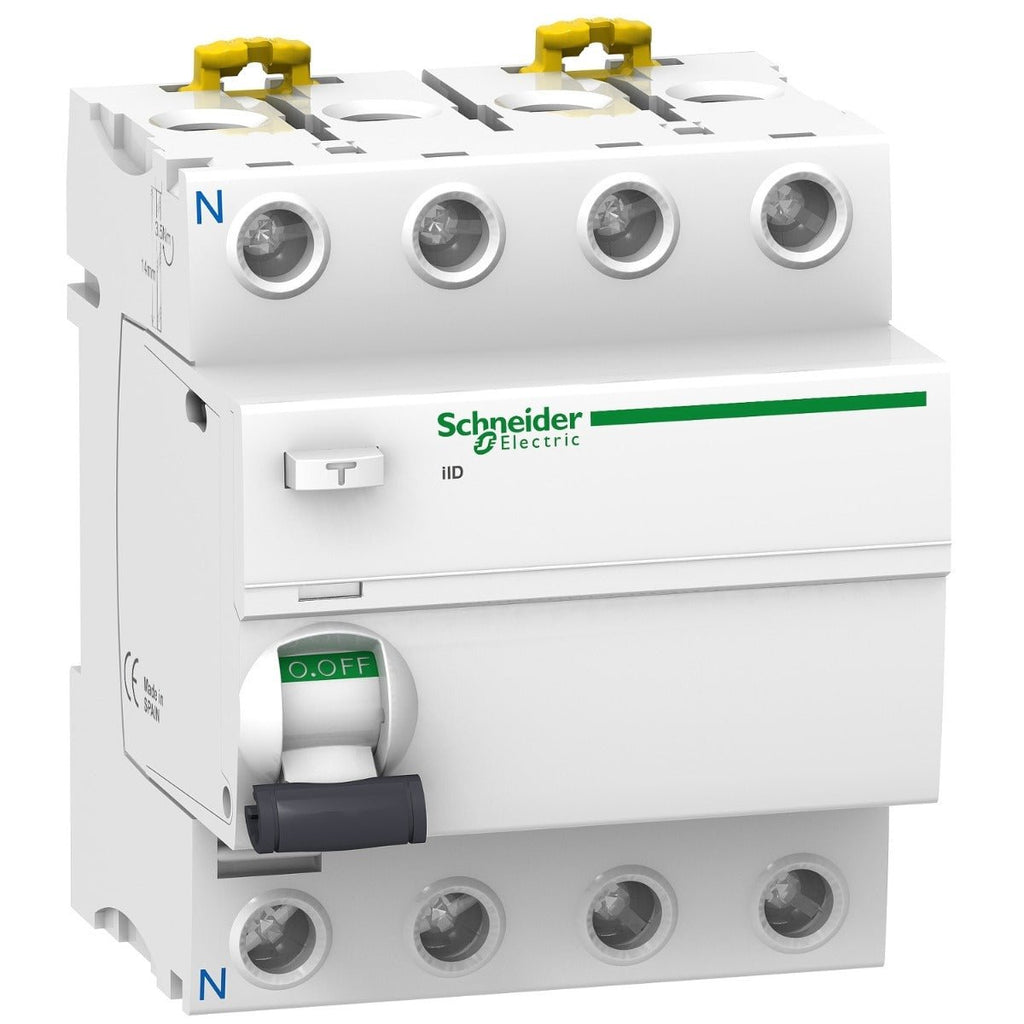

Product Description

• poles description: 4P

• number of protected poles: 4

• [In] rated current: 63A

• network type: AC

• earth-leakage sensitivity: 30 mA

• earth-leakage protection time delay: Instantaneous

• earth-leakage protection class: Type A-SI (Super Immunised)

• device location in system: Outgoer

• network frequency: 50/60 Hz

• [Ue] rated operational voltage: 380...415 V AC 50/60 Hz

• residual current tripping technology: Voltage independent

• rated breaking and making capacity:

  • Idm 1500 A
  • Im 1500 A

• rated conditional short-circuit current: 10 kA

• [Ui] rated insulation voltage: 500 V AC 50/60 Hz

• [Uimp] rated impulse withstand voltage: 6 kV

• surge current: 3000 A

• contact position indicator: Yes

• control type: Toggle

• mounting mode: Clip-on

• mounting support: DIN rail

• 9 mm pitches: 8

• height: 91 mm
• width: 72 mm
• depth: 73.5 mm

• net weight: 0.37 kg

• colour: White

• standards: EN/IEC 61008-1

• IP degree of protection

  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529
