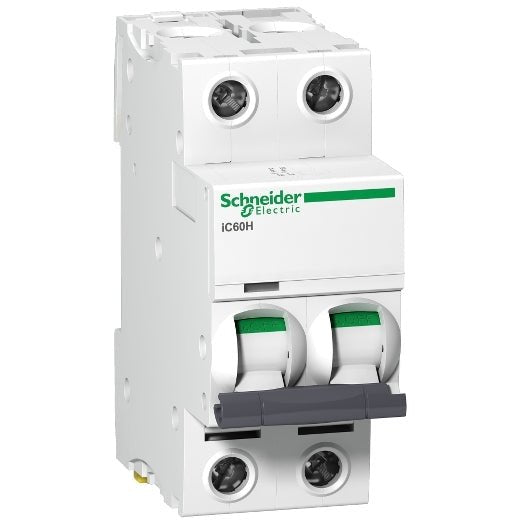

Product Description

• poles description: 2P

• number of protected poles: 2

• [In] rated current: 25A

• network type: AC

• trip unit technology: Thermal-magnetic

• curve code: D

• breaking capacity

  • 10 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2
    10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
    42 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
    30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
    15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
    10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2

• network frequency: 50/60 Hz

• [Ue] rated operational voltage: 440 V AC 50/60 Hz

• magnetic tripping limit: 12 x In +/- 20 %

• limitation class: 3 conforming to EN/IEC 60947-2

• [Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN/IEC 60947-2

• [Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2

• contact position indicator: Yes

• control type: Toggle

• local signalling: Trip indicator

• mounting mode: Clip-on

• mounting support: Rail

• 9 mm pitches: 4

• height: 85 mm
• width: 36 mm
• depth: 78.5 mm

• net weight: 0.25 kg

• provision for padlocking: Padlockable

• connections - terminals:

  • Single terminal (top or bottom) 1…25 mm ² rigid
  • Single terminal (top or bottom) 1…16 mm ² flexible

• wire stripping length: 14 mm for top or bottom connection

• tightening torque: 2 N.m top or bottom

• earth-leakage protection: Separate block
  standards:

  • EN/IEC 60947-2
  • EN/IEC 60898-1

• IP degree of protection: IP20 conforming to IEC 60529
