Product Details

• Range of product: Acti9

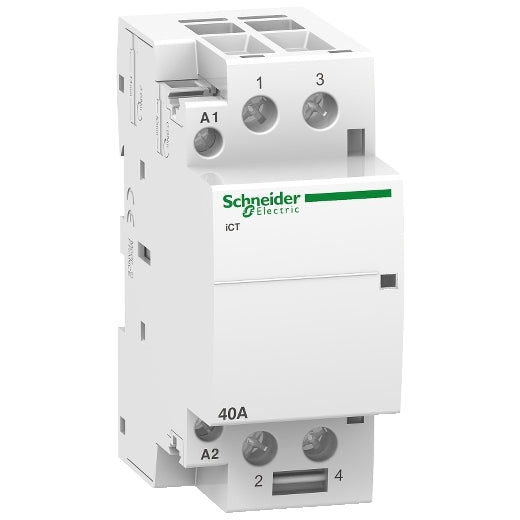

• Product name: Acti9 iCT

• Product or component type: Contactor

• Device short name: iCT

• Device application: Motor-heating-lighting

• Poles: 2P

• [Ie] rated operational current:
  • 40 A AC-7A
  • 15 A AC-7B
• Pole contact composition: 2 NO

• Network type: AC

• Control type: Remote control

• [Uc] control circuit voltage: 220...240 V AC 50 Hz

• Network frequency: 50 Hz

• [Ue] rated operational voltage: 400 V AC 50 Hz

• Maximum power: 1.6 W at 400 V AC

• [Ui] rated insulation voltage: 500 V AC 50 Hz

• [Uimp] rated impulse withstand voltage: 4 kV

• Control signal type: Maintained

• Switching frequency: 100 switching operations/day

• Local signalling: Action indicator

• Hold-in power consumption in VA: 4.6 VA

• Inrush power in VA: 34VA

• Mounting mode: Clip-on

• Mounting support: 35 mm symmetrical DIN rail

• 9 mm pitches: 4

• Height: 85 mm
• Width: 36 mm
• Depth: 60 mm

• Colour: White

• Mechanical durability: 1000000 cycles

• Product compatibility IACTs

  • IACTp
  • IACTs
  • IATEt
  • IACTc
• Compatibility code: ICT
