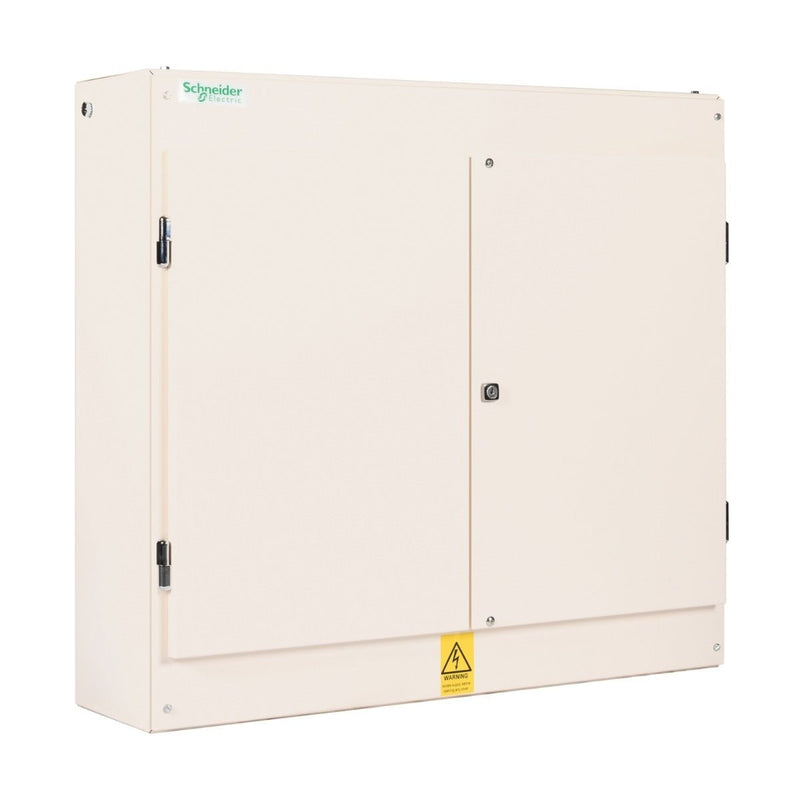

Scheider Merlin Gerin MG6C6 Powerpact 4 - 6 Way, 3P, 630A Panelboard
Product Details
-
provided equipment:
- Removable bottom gland plate
- end cover
- [In] rated current: 250 A
-
number of ways:
- 18 ways (1P)
- 6 ways (3P)
- [Ue] rated operational voltage: 415 V 50 Hz AC
- breaking capacity: 36 kA AC 1 s
- enclosure material: Epoxy-polyester powder steel
- thickness: Cover: 1.2 mm
- Enclosure: 1.6 mm
- cable entry: Bottom at main
- device mounting: Wall mounted
-
Dimensions:
- height: 1178 mm
- width: 850 mm
- depth: 260 mm
- horizontal fixing centres: 710 mm
- vertical fixing centres: 1350 mm
- IP degree of protection: IP3x
Specification
Depth |
260 mm |
Gtin |
5018934933283 |
Height |
1178mm |
Product type |
Commercial Accessories |
Single pole ways |
18 |
Triple pole ways |
6 |
Width |
850 mm |
