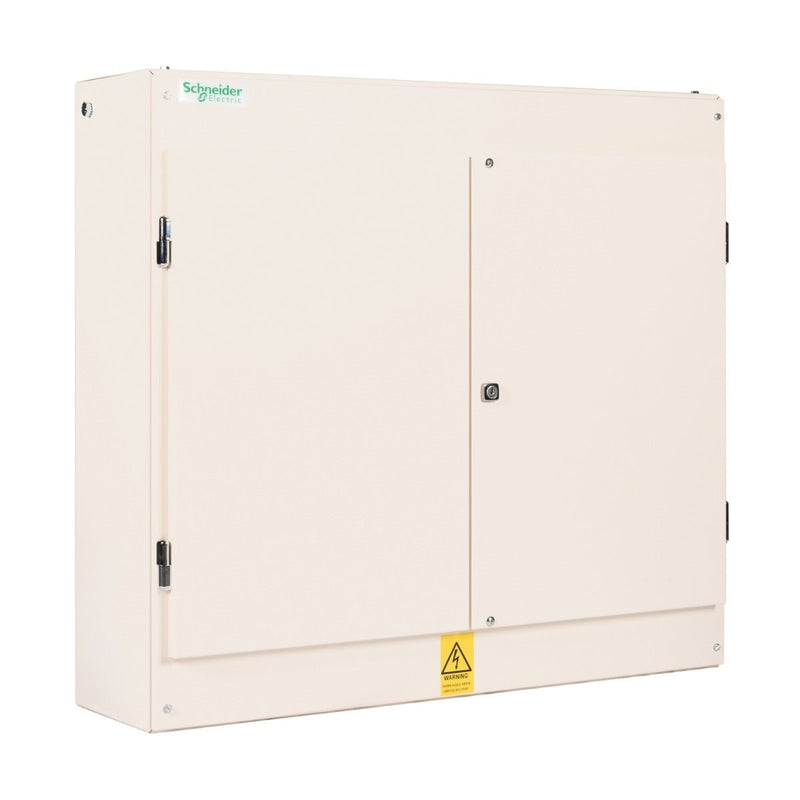

Product Details

• provided equipment:
  • Removable bottom gland plate
  • end cover



• [In] rated current: 250 A

• number of ways:

  • 27 ways (1P)
  • 9 ways (3P)

• [Ue] rated operational voltage: 415 V 50 Hz AC

• breaking capacity: 36 kA AC 1 s

• enclosure material: Epoxy-polyester powder steel

• thickness: Cover: 1.2 mm

• Enclosure: 1.6 mm

• cable entry: Bottom at main

• device mounting: Wall mounted

• Dimensions:
  • height: 889 mm
  • width: 850 mm
  • depth: 260 mm

• horizontal fixing centres: 670 mm

• vertical fixing centres: 751 mm

• IP degree of protection: IP3x
