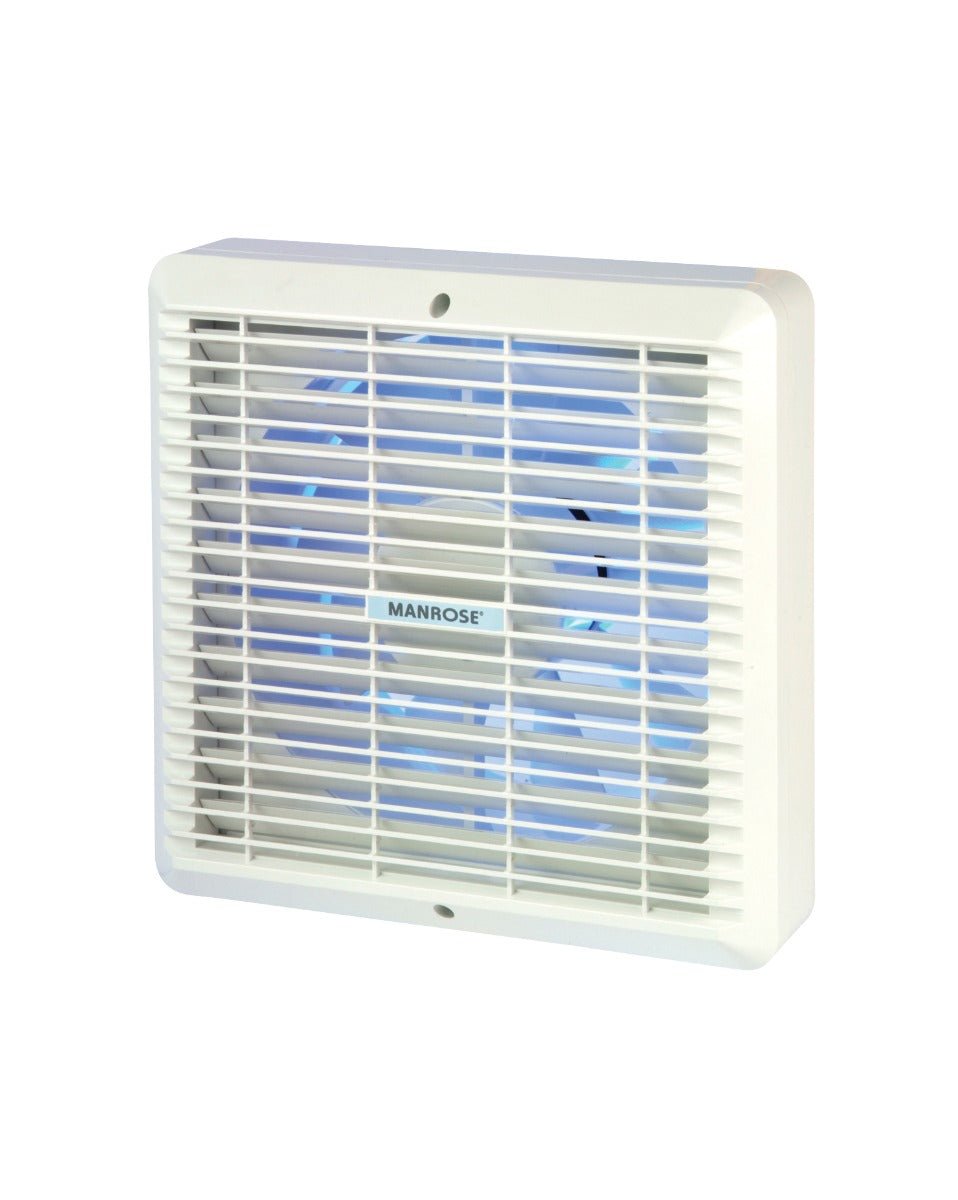

Manrose XFS230A - 230mm commercial fan - automatic shutter
- With a unique, slimline profile of only 62mm the XFS230 range will blend unobtrusively into any surrounding decor.
- Designed for wall or ceiling mounting, this series of fans and packs is ideally suited to use in kitchens, utility rooms, pubs, hotels, restaurants, offices, shops and factories.
- There are three models in the range: the basic model with fixed louvres, the manual with internal pullcord operated backdraught shutters and the automatic version with thermo-activated internal shutters which open automatically when the fan is switched on.
- Incorporating the latest ventilation technology, this series has an extract rate of 668m3/hr, 185 litres per second.
- The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
- Power is provided by a four pole single phase induction motor with pre-oiled bearings, totally enclosed for protection against dust and dirt, for a long, maintenance-free life.
- This family of fans has been completed with the addition of the XFS300 range of 300mm (12") fans, which offer a powerful extract rate of 1100m3/hr, 306 litres per second and are available in the same formats as the XFS230 series.
- Designed to comply with the Building Regulations on Ventilation (F1).
| Installation Type: | Wall, Panel |
| IP Rating: | IP24 |
| Shutter Type: | Powered |
| Number of Speeds: | 1 |
| Sound dB(A) @ 3m: | 50 |
| Power 1 (W): | 41 |
| Depth (mm): | 141 |
| Speed 1 (l/s): | 185.6 |
Specification
Control type |
Standard |
Depth |
141mm |
Enclosure material |
Plastic |
Fan type |
Axial |
Height |
286mm |
Internal external |
Internal |
Mounting options |
Ceiling;Wall |
Product type |
Ventilation |
Width |
286mm |
