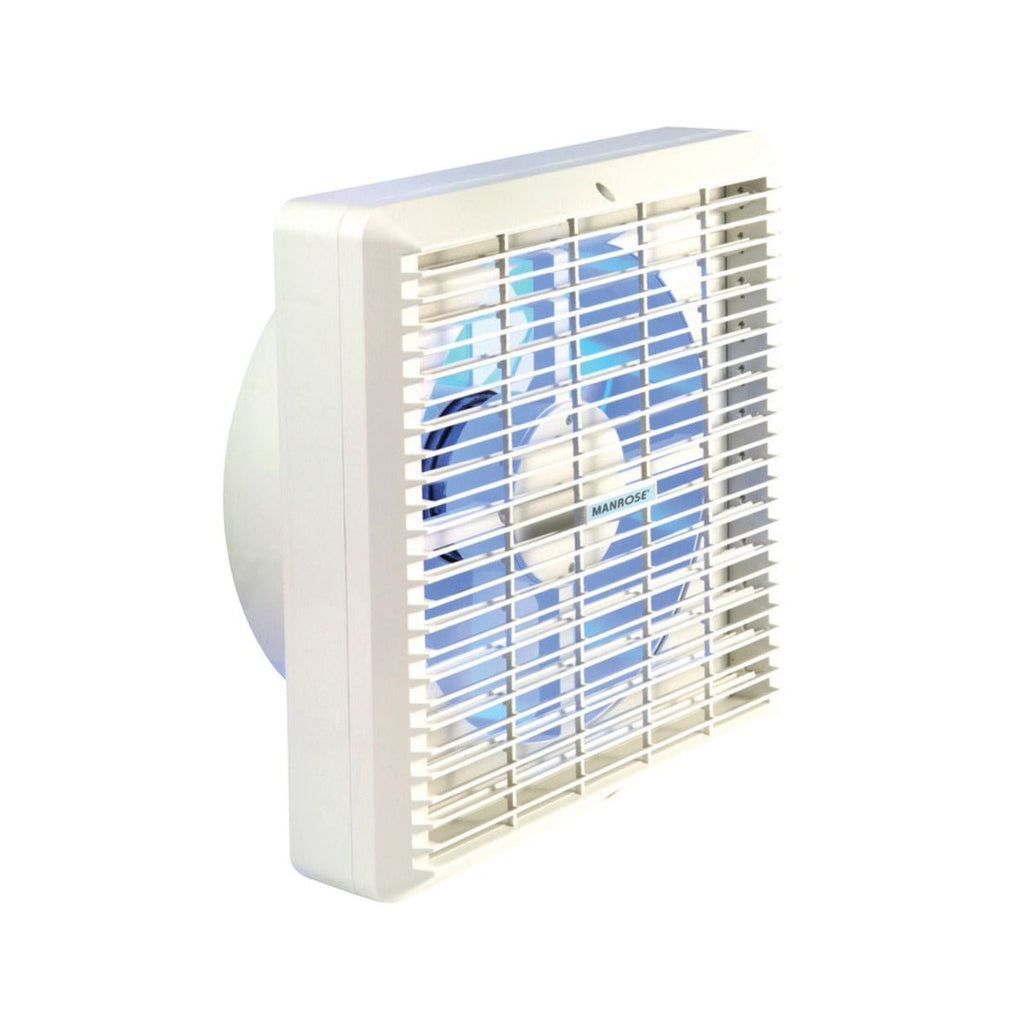

Manrose WF150AT - 150mm kitchen fan - window - automatic shutters - timer
- Designed to work effectively in kitchens, the 150mm (6") axial flow kitchen fans are quiet, efficient and can be wall, ceiling or window mounted.
- Incorporating the latest technology, the 150 series has been designed for simple installation and has a powerful extract rate of 230m3/hr 64 litres per second for the XF version and 220m3/hr 62 litres per second on the WF150.
- The range is ideally suited to use in domestic and commercial applications including kitchens, utility rooms, restaurants, hotels, offices and shops. The WF150 range is suitable for window mounting.
- The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
- Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
- Designed to comply with the Building Regulations on Ventilation (F1).
| Installation Type: | Window |
| Running Mode: | Intermittent |
| IP Rating: | IP24 |
| Shutter Type: | Powered |
| Max Timer (Minutes): | 20 |
| Number of Speeds: | 1 |
| Sound dB(A) @ 3m: | 40 |
| Power 1 (W): | 25 |
| Depth (mm): | 118 |
| Speed 1 (l/s): | 61.1 |
Specification
Control type |
Timer |
Depth |
95mm |
Enclosure material |
Plastic |
Fan size |
6" |
Fan type |
Axial |
Gtin |
5020953550723 |
Height |
203mm |
Internal external |
Internal |
Mounting options |
Ceiling;Wall |
Product type |
Ventilation |
Width |
203mm |
