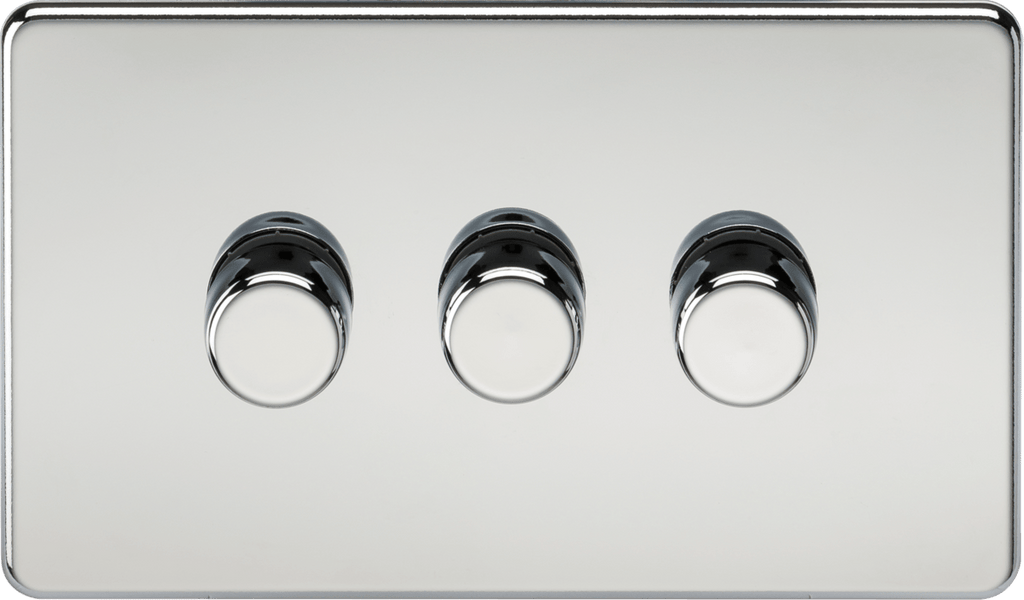

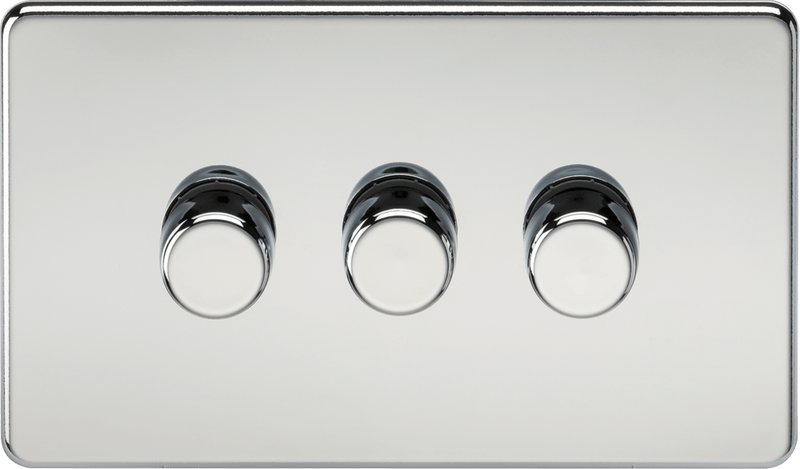

Knightsbridge MLA SF2193PC Screwless 3G 2-way 10-200W (5-150W LED) Intelligent dimmer - Polished Chrome
Perfect finishing touch to any modern home, flawless Screwless low profile metal design with matching dimmer caps.
- Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
- Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps
- Push On/Off, rotary dimming action
- Preset in Trailing-edge mode
- 10-200W (5-150W LED)
- Suitable for use with dimmable lamps only
- Overload and Overheat protection
- Fitted with an Inrush Current Limiter (ICL)
NB: DO NOT USE IN A MIXED ENVIRONMENT i.e. difference brands of lamps or different wattages of lamps in same fitting
| NET WEIGHT (KG) | 0.337 |
|---|---|
| FINISH | Polished Chrome |
| DIMENSIONS (MM) | Height - 87.5 Width - 147.5 Projection - 4.3 Recessed Depth - 21.3 |
| MINIMUM MOUNTING BOX DEPTH | 25mm |
| CONSTRUCTION | Construction - 201 Stainless steel |
| CLASS | I |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH FUNCTION | 2-Way |
| EARTH TERMINAL | Yes |
| LOAD/MAX. LOAD | 10-200W (5-150W LED) Max. 15 Lamps per dimmer |
| TERMINAL TYPE | Screw |
| TERMINAL CAPACITY | 2 x 1.0mm² or 2 x 1.5mm² |
| BUILT-IN TECHNOLOGY | Intelligent - Switchable Leading Edge and Trailing Edge (default) |
| ADDITIONAL FEATURES | Trim, switch modes and reset dimmer all from the front of the plate via the control knob |
| WARRANTY | 2year(s) |
