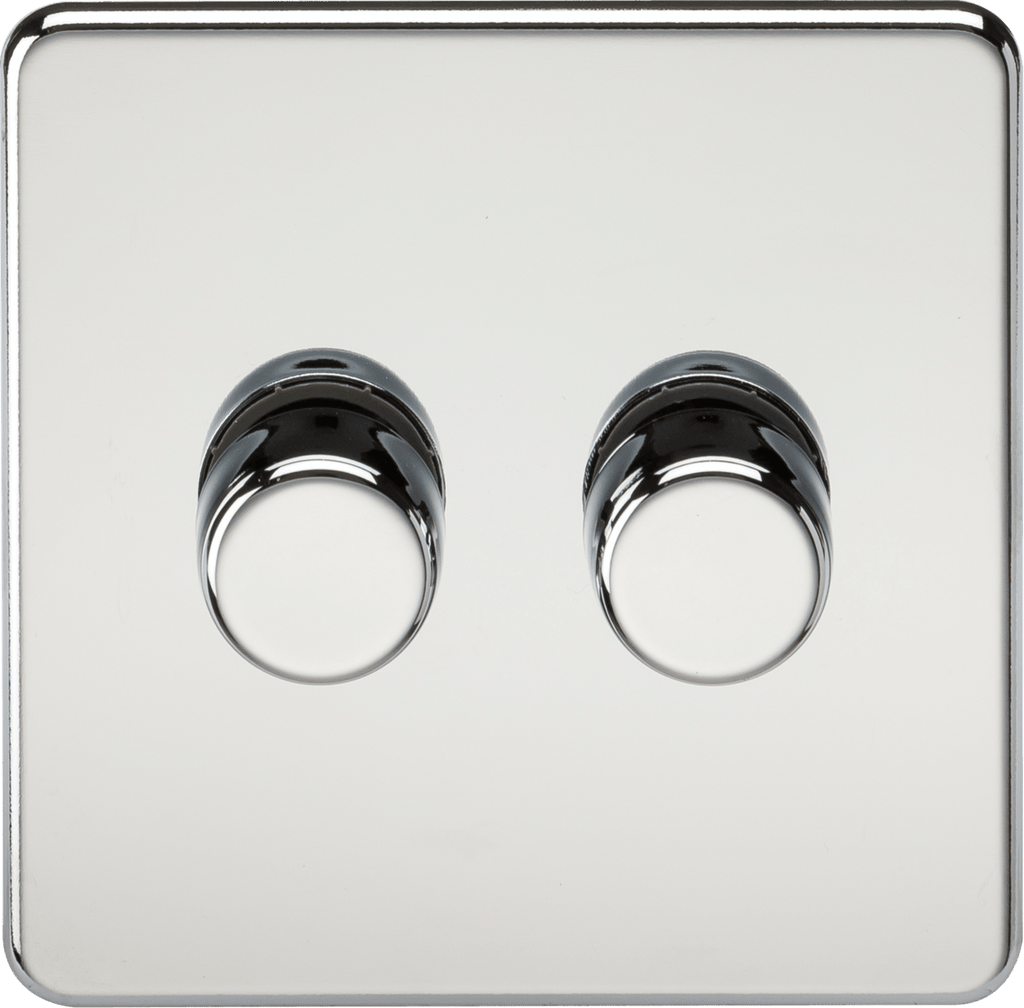

Perfect finishing touch to any modern home, flawless Screwless low profile metal design with matching dimmer caps. NB: PLEASE CHECK WITH LAMP MANUFACTURER FOR COMPATIBILITY

• Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
• Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps
• Push On/Off, rotary dimming action
• Preset in Trailing-edge mode
• 10-200W (5-150W LED)
• Suitable for use with dimmable lamps only
• Overload and Overheat protection
• Fitted with an Inrush Current Limiter (ICL)

• NET WEIGHT (KG)	0.208
  FINISH	Polished Chrome
  DIMENSIONS (MM)	Height - 87.5 Width - 87.5 Projection - 4.3 Recessed Depth - 21.3
  MINIMUM MOUNTING BOX DEPTH	25mm
  CONSTRUCTION	Construction - 201 Stainless steel
  CLASS	I
  IP RATING	IP20
  INPUT VOLTAGE	230V 50Hz
  SWITCH FUNCTION	2-Way
  EARTH TERMINAL	Yes
  LOAD/MAX. LOAD	10-200W (5-150W LED) Max. 15 Lamps per dimmer
  TERMINAL TYPE	Screw
  TERMINAL CAPACITY	2 x 1.0mm² or 2 x 1.5mm²
  BUILT-IN TECHNOLOGY	Intelligent - Switchable Leading Edge and Trailing Edge (default)
  ADDITIONAL FEATURES	Trim, switch modes and reset dimmer all from the front of the plate via the control knob
  WARRANTY	2year(s)
