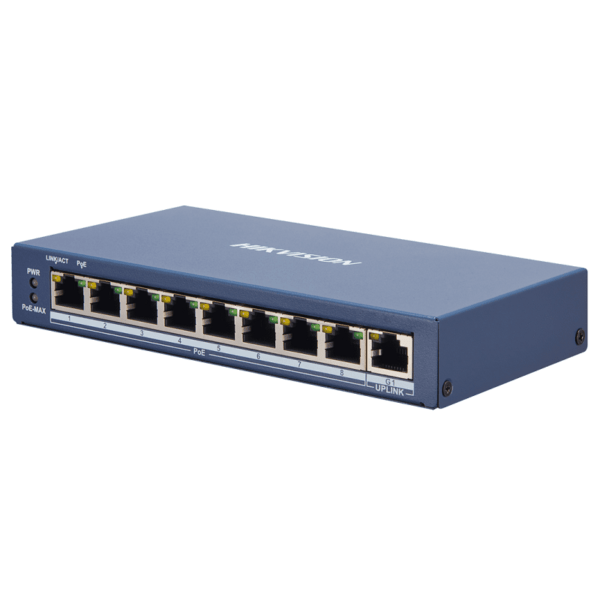

Product Description

8 × 100 Mbps PoE RJ45 ports, 1 × gigabit network RJ45 port.

IEEE 802.3at/af standard for PoE ports.

Network topology management, alarm push, network health monitor.

6 KV surge protection for PoE ports.

Up to 300 m long-range transmission.

AF/AT camera can reach up to 300 m in extend mode.

Product Details

• Dimension (W × H × D): 170 mm × 27.6 mm × 93.1 mm

• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)

• Gross Weight: 1.114 kg (12.45 lb)

• Net Weight: 0.35 kg (0.77 lb)

• Shell: Metal material, fan-free design

• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Operating Humidity: 5% to 95% (no condensation)

• Power Supply: 48 VDC, 2.5 A

• Max. Power Consumption: 120 W
