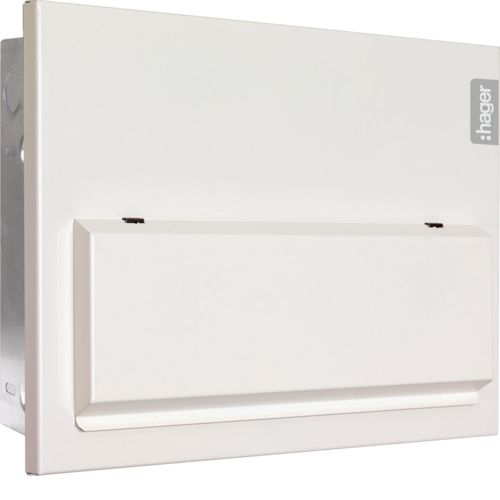

Hager VMLF912C 12-Way 100A, Consumer Unit w- 2 x 100A 30mA RCCB
Technical Details
- Rated Current: 100A
- Dimensions (HxWxD): 282 x 443 x 104mm
- Number of rows: 1
- Rated Frequency: 50 Hz
- Rated operational voltage (Un/Ue): 230V a.c 50Hz
- Rated Insulation Voltage (Ui): ) 320V a.c. 50Hz
- Materals: Steel
- IP Protection: IP2XC
- Mechanical impact protection: IK05
- Incoming Line/Neutral terminal: 50mm ²
- Incoming Earth Terminal: 16mm ²
Specification
Consumer unit type |
RCD |
Depth |
104mm |
Enclosure material |
Metal |
Flexible configuration |
No |
Gtin |
5015652602040 |
Height |
282mm |
Internal external |
Internal |
Number of incoming ways |
12 |
Populated |
No |
Product type |
RCD Units |
Width |
443mm |
