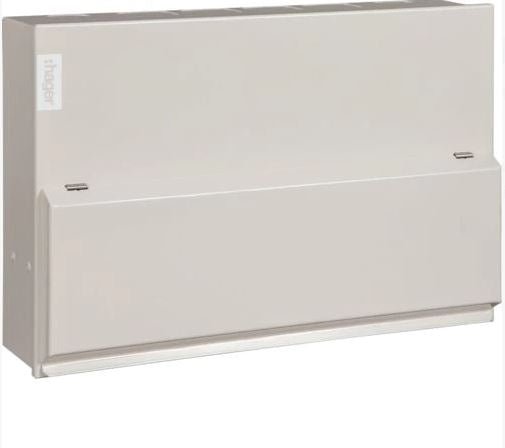

Product Description

The range of consumer units with a 100A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below.

100A RCCBs allow the board to be installed with upstream protection offered by any rating of cut out fuse (60, 80 or 100A) without the need to calculate the sum of downstream devices to establish overcurrent requirements.

High integrity layout allows RCBOs to be fitted separate to the RCCBs for reduction of nuisance tripping on essential circuits and splitting earth leakage across multiple RCDs.

Rear Knockouts for ease of cable entry, front cover retained screws which prevent loss during installation, full metal DIN rail for secure and stable attachment of devices.

Quick release clip on MCB/RCBO which allows removal of MCB/RCBO with busbar still in place. Top mounted terminal rail for each row makes the wiring of the neutral and earth connections neat and simple.

Technical Details

• Rated Current: 100A

• Dimensions (HxWxD): 245 x 368.4 x 100mm

• Number of Modules: 10

• Materals: Steel

• Number of rows: 1

• IP Protection: IP2XC

• Mechanical Impact Protection: IK05

• Standards: BS EN 61439-3
