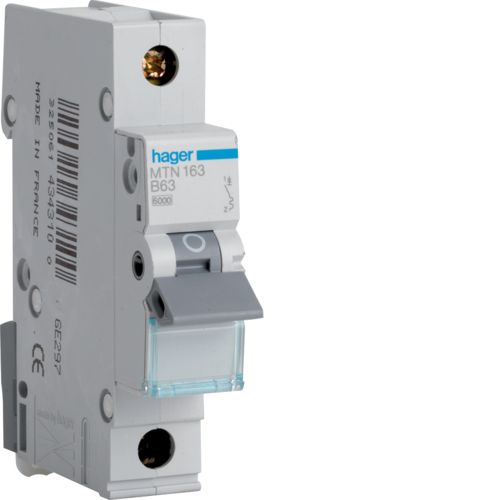

Hager MTN163 63A, 1-Pole, 6kA, B-Type MCB
Technical Details
- Number of Poles: 1
- Curve: B
- Dimensions (HxWxD): 83 x 17.5 x 70mm
- Rated Frequency: 50/60 Hz
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Rated service breaking capacity Ics AC according IEC 60898-1: 6 kA
- Total power loss under IN: 1.3 W
- Connection cross-sect. flexible conductor: 1 / 25mm ²
- Connection cross-sect. rigid cable: 1 / 35mm ²
- Type of connection: with screw
- IP Protection: IP20
Specification
Depth |
70mm |
Enclosure material |
Metal |
Flexible configuration |
No |
Gtin |
3250614343100 |
Height |
83mm |
Internal external |
Internal |
Populated |
No |
Product type |
MCB Units |
Width |
17.5mm |
