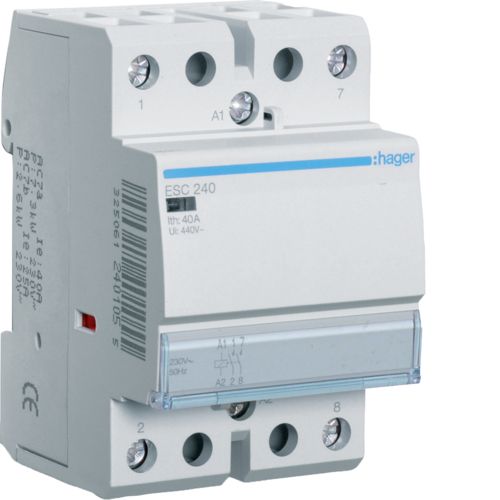

Product Details

• Rated operational voltage Ue: 400 V

• Frequency: 50 Hz

• Rated current: 40 A

• Rated insulation voltage: 440 V

• Rated impulse withstand voltage: 4 kV

• Depth of installed product: 60 mm
• Height of installed product: 83 mm
• Width of installed product: 54 mm

• Total power loss under IN: 12,15 W

• Power dissipation per coil: 0,5 W

• Electric endurance in number of cycles: 30000

• Number of mechanical operations: 100000

• Number of modules: 3

• Max. power with fluorescent parallel lamps: 1300 VA

• Max. power with incandescent lamps: 4000 W

• Tightening torque:
  • Coil: 2,5Nm
  • Power: 3,5Nm

• Connection cross-sect. flexible conductor: 1,5 / 16mm ²

• Connection cross-sect. rigid cable: 1,5 / 25mm ²

• Type of connection: with screw

• Type of contacts: 2NO

• Can be accessorized: Yes

• European directive WEEE: concerned

• Protection index IP: IP2X

• Protection class: isol.class II
