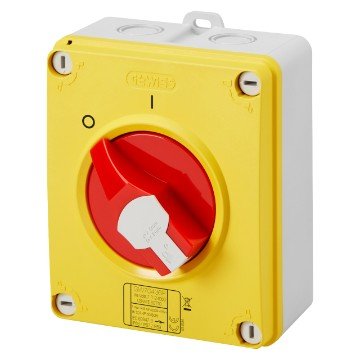

Gewiss GW70434P 2P, 32A, Rotary Emergency Isolator Switch (Box) w- Lockable Red Knob
Product Details
- Rated current (A): 32
- IP degree: IP65
- No. of poles: 2P
- Type: Emergency switch
- Circuit breaker: Rotary isolator
- Mechanical resistance: IK08
- Ambient temperature: -25 +60 °C
- Lid screws (no. and type): 4 insul. a 1/4 turn
- Holes entry: 2 x M20/25 + 2 x M20/25
- Lockable: Yes (max. 3 locks in OFF)
- Type of accessory: Max. 2 auxiliary contacts
- Current in AC22 (415V): 32
- Current in AC23 (415V): 32
- Cable section: Max 10 mm²

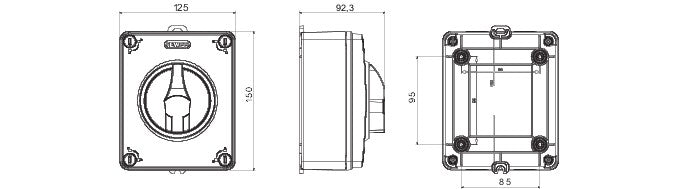

- Outer dim. LxHxD (mm): 125x150x75,5
- Electrocod: 1742
Specification
Product type |
Industrial Wiring Accessories |
