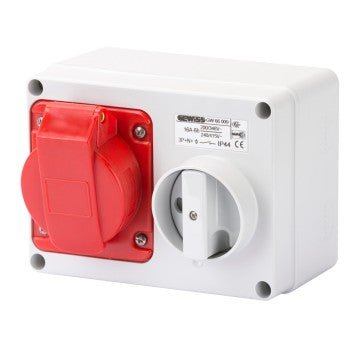

Gewiss GW66019 3P+E, 32A, Fixed Interlocked Horizontal Socket-Outlet w- Bottom 380 - 415V, 6H

Gewiss GW66019 3P+E, 32A, Fixed Interlocked Horizontal Socket-Outlet w- Bottom 380 - 415V, 6H - Gewiss - Falcon Electrical UK
Gewiss GW66019 3P+E, 32A, Fixed Interlocked Horizontal Socket-Outlet w- Bottom 380 - 415V, 6H - Gewiss - Falcon Electrical UK
Roll over image to zoom in Click on image to zoom
Gewiss GW66019 3P+E, 32A, Fixed Interlocked Horizontal Socket-Outlet w- Bottom 380 - 415V, 6H - Gewiss - Falcon Electrical UK
Gewiss GW66019 3P+E, 32A, Fixed Interlocked Horizontal Socket-Outlet w- Bottom 380 - 415V, 6H - Gewiss - Falcon Electrical UK

Gewiss GW66019 3P+E, 32A, Fixed Interlocked Horizontal Socket-Outlet w- Bottom 380 - 415V, 6H

Gewiss
£40.53For 1
£48.64 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Gewiss GW66019 3P+E, 32A, Fixed Interlocked Horizontal Socket-Outlet w- Bottom 380 - 415V, 6H

Product Details

  • Fuse-holder Base not included

  • Colour: Red

  • Rated current (A): 32

  • IP degree: IP44

  • No. of poles: 3P+E

  • Thermo-pressure with ball: 125 °C (active parts) - 80 °C (passive parts)

  • Mechanical resistance: IK08

  • Reference: 6H

  • Protection: No (SBF)

  • Rated voltage: 380 - 415 V

  • Frequency: 50/60 Hz

  • Operating temperature: -25 +40 °C

  • Electrocod: 2220

  • Glow wire test: 850 °C (active parts) - 650 °C (passive parts)

Specification

Gtin

 8011564006126

Product type

 Industrial Wiring Accessories
