Product Details

• Colour: Red

• Rated current (A): 125

• IP degree: IP67

• No. of poles: 3P+N+E

• Mechanical resistance: IK08

• Reference: 6H

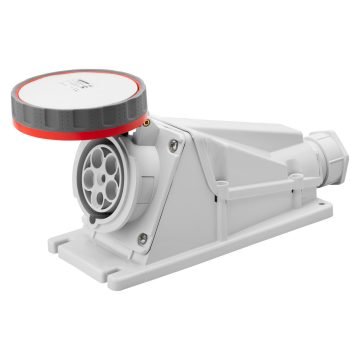

• Type: 90° angled surface-mounting socket-outlet


• Rated voltage: 380 - 415 V

• Frequency: 50/60 Hz

• Terminal tightening capacity: 16-50mm² flexible cables - 25-70mm² rigid cables

• Operating temperature: -25 +55 °C

• Type of wiring: With screw

• Electrocod: 2211

• Glow wire test: 850 °C (active parts) - 650 °C (passive parts)

• Total number of operations: > 500

• Breaking capacity at 1.1 Un: 156 A

• Insulation resistance: > 10 MΩ
