Product Details

• Colour: Yellow

• Rated current (A): 32

• IP degree: IP44

• No. of poles: 2P+E

• Mechanical resistance: IK09

• Reference: 4H

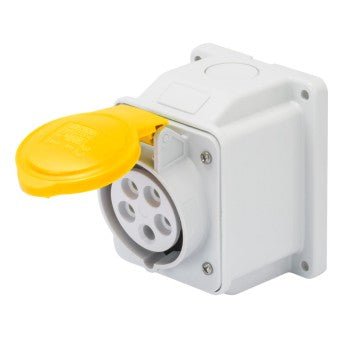

• Type: 10° angled surface-mounting socket-outlet


• Rated voltage: 100 - 130 V

• Frequency: 50/60 Hz

• Terminal tightening capacity: 2.5-6mm² flexible cables - 2.5-10mm² rigid cables

• Operating temperature: -25 +55 °C

• Type of wiring: With screw

• Type of material: Halogen-free in compliance with EN 60754-2

• Electrocod: 2210

• Glow wire test: 850 °C (active parts) - 850 °C (passive parts)

• Total number of operations: > 2000

• Permissible overload: 42 A

• Breaking capacity at 1.1 Un: 40 A

• Insulation resistance: > 10 MΩ
