Product Details

• Colour: Blue

• Rated current (A): 16

• IP degree: IP44

• No. of poles: 2P+E

• Mechanical resistance: IK09

• Reference: 6H

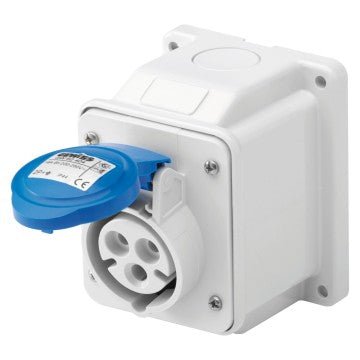

• Type: 10° angled surface-mounting socket-outlet


• Rated voltage: 200 - 250 V

• Frequency: 50/60 Hz

• Terminal tightening capacity: 1-2.5mm² flexible cables - 1.5-4mm² rigid cables

• Operating temperature: -25 +55 °C

• Type of wiring: With screw

• Type of material: Halogen-free in compliance with EN 60754-2

• Electrocod: 2210

• Glow wire test: 850 °C (active parts) - 850 °C (passive parts)

• Total number of operations: > 5000

• Permissible overload: 22 A

• Breaking capacity at 1.1 Un: 20 A

• Insulation resistance: > 10 MΩ
