Product Details

• Colour: Yellow

• Rated current (A): 32

• IP degree: IP44

• No. of poles: 2P+E

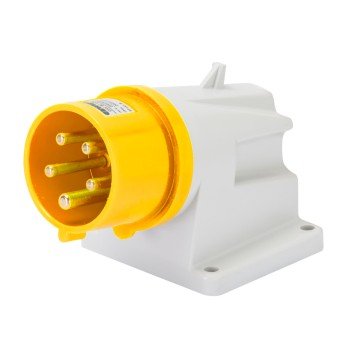

• Type: 90° angled surface mounting inlet

• Type of wiring: with screw

• Terminal tightening capacity: 2.5-6mm² flexible cables - 2.5-10mm² rigid cables

• Thermo-pressure with ball: 125 °C (active parts) - 80 °C (passive parts)

• Mechanical resistance: IK08

• Reference: 4H

• Rated voltage: 100 - 130 V

• Frequency: 50/60 Hz

• Operating temperature: -25 +55 °C

• Electrocod: 2230

• Glow wire test: 850 °C (active parts) - 650 °C (passive parts)

• Total number of operations: > 2000

• Permissible overload: 42 A

• Breaking capacity at 1.1 Un: 40 A

• Insulation resistance: > 10 MΩ
