Product Details

• Colour: Red

• Rated current (A): 16

• IP degree: IP44

• No. of poles: 3P+N+E

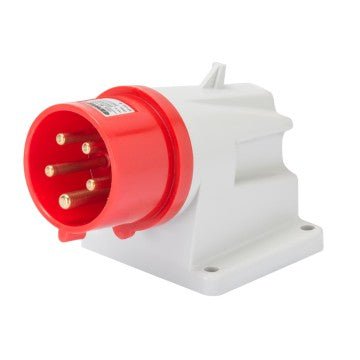

• Type: 90° angled surface mounting inlet

• Type of wiring:With screw

• Terminal tightening capacity: 1-2.5mm² flexible cables - 1.5-4mm² rigid cables

• Thermo-pressure with ball: 125 °C (active parts) - 80 °C (passive parts)

• Mechanical resistance: IK08

• Reference: 6H

• Rated voltage: 380 - 415 V

• Frequency: 50/60 Hz

• Operating temperature: -25 +55 °C

• Electrocod: 2230

• Glow wire test: 850 °C (active parts) - 650 °C (passive parts)

• Total number of operations: > 5000

• Permissible overload: 22 A

• Breaking capacity at 1.1 Un: 20 A

• Insulation resistance: > 10 MΩ
