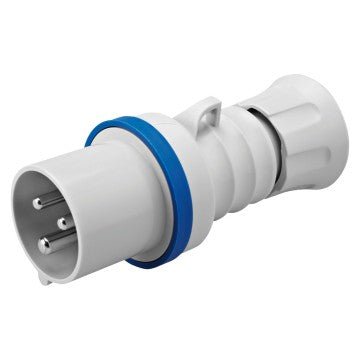

Gewiss GW60004H 2P+E 16A 200-250V, 6H Straight Plug
Product Details
- Colour: Blue
- Rated current (A): 16
- IP degree: IP44/IP54
- No. of poles: 2P+E
- Reference: 6H
- Mechanical resistance: IK09
- Type: Straight plug
- Rated voltage: 200 - 250 V
- Frequency: 50/60 Hz
- Terminal tightening capacity: 1-2.5mm² flexible cables - 1.5-4mm² rigid cables
- Cable clamp tightening capacity: 7.5-13.8 mm
- Operating temperature: -25 +55 °C
- Type of wiring: With screw
- Type of material: Halogen-free in compliance with EN 60754-2
- Electrocod: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Permissible overload: 22 A
- Breaking capacity at 1.1 Un: 20 A
- Insulation resistance: > 10 MΩ
Specification
Gtin |
8011564796584 |
Product type |
Industrial Wiring Accessories |
