Product Details

• Insulation class: II

• Colour: Grey RAL 7035

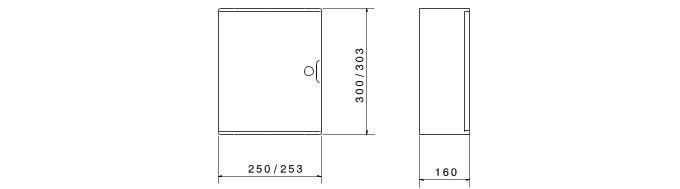

• Nominal dim. LxHxD (mm): 250x300x160

• IP degree: IP65

• Characteristics: UV resistance (EN 62208)

• Material: Polyester reinforced with fibreglass

• Mechanical resistance: IK10

• No. locks: 1

• Dispersible power A (W): 34

• Glow Wire Test: 960 °C

• Functional dimensions LxHxD (mm): 253x303x160

• Operating temperature: -25 +60 °C

• Insulation voltage: 1000 V

• Type of material: Halogen-free in compliance with EN 60754-2

• Electrocod: 0321

• Thermo-pressure with ball: 200 °C

• Standard:EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

• Family: 46 QP

• Maximum rated insulation voltage (Ui): 690 V

• Type of door: Blank door

• Surface-mounting brackets: GW46446-GW46451

• Kit for double insulation restore: GW46526
