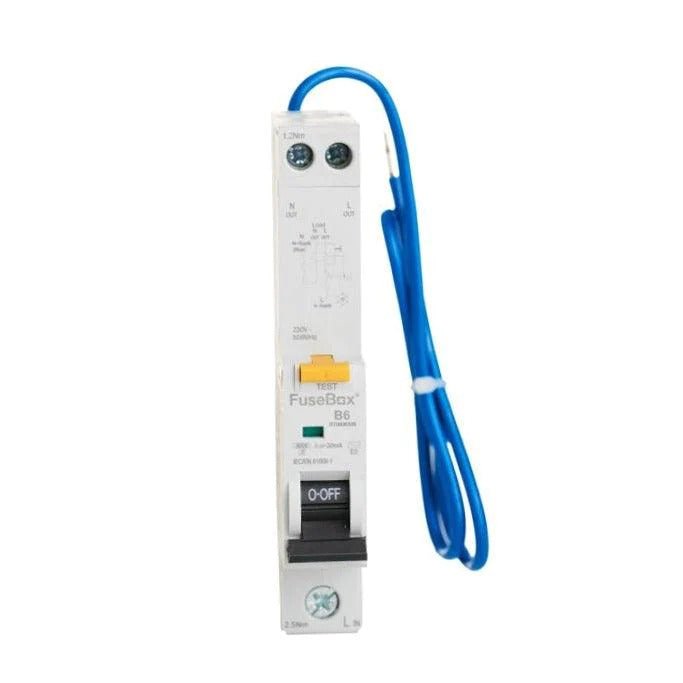

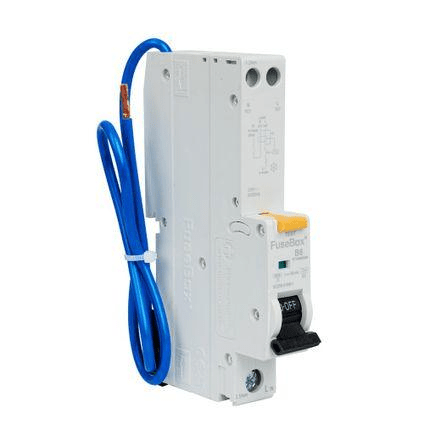

Fusebox RTA064530B 40A RCBO 6kA 1 pole (B CURVE) Type A
Product Details
| RATED RESIDUAL OPERATING CURRENT (IΔn) | 30mA |
| STANDARD | IEC/EN 61009-1 |
| NUMBER OF POLES | 1P + N |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| RATED BREAKING CAPACITY (Icn) | 6000A (6kA) |
| RATED CURRENT (In) | 45 |
| TRIPPING CHARACTERISTICS | B Curve: 3-5In |
| RESIDUAL CURRENT CHARACTERISTICS | TYPE A (AC AND PULSATING DC UP TO 6mA) |
| RATED RESIDUAL OPERATING CURRENT (IΔn) | 0.03 |
| MECHANICAL ENDURANCE | 10,000 |
| PROTECTION DEGREE (IP) | 20 |
| MAXIMUM TERMINAL CAPACITY | 1-16mm ² L IN / 1-10mm ² OUT N L |
| RECOMMENDED TIGHTENING TORQUE (Nm) | 2.5Nm L IN / 1.2Nm OUT N L |
| FLYING NEUTRAL CABLE LENGTH (mm) | 450mm |
| MOUNTING | 35mm din rail |
| MATERIAL | PA6 (Nylon 6) |
| WEIGHT (1PC) Kg | 0.2 |
| INNER CARTON QUANTITY | 1 |
| OUTER CARTON QUANTITY | 60 |
| ORIGIN OF MANUFACTURE | CHINA |
Specification
Gtin |
5060523523450 |
Product type |
RCBO Units |
