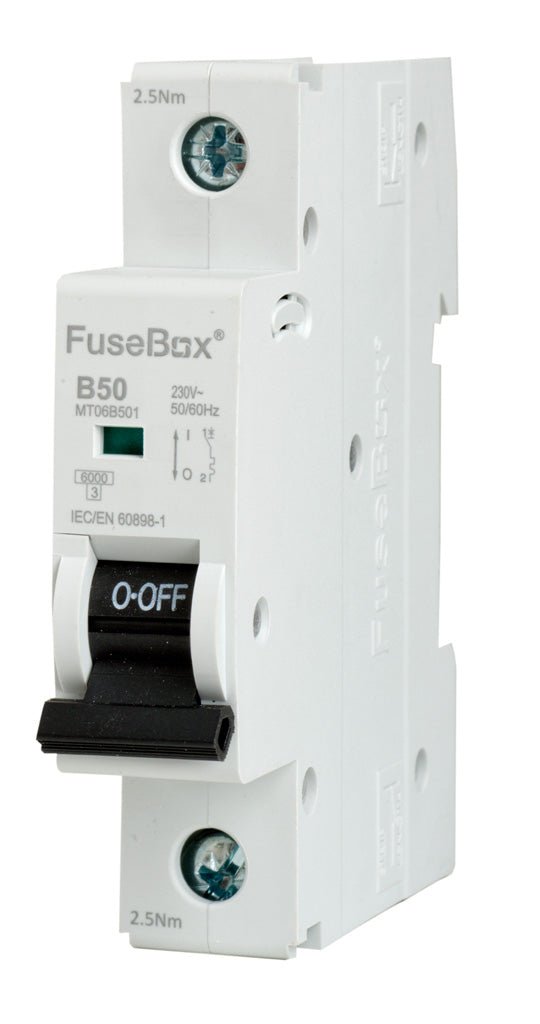

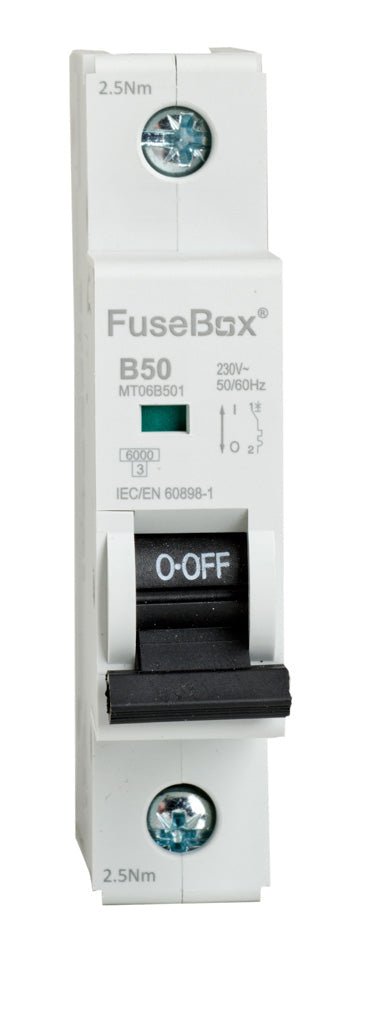

Fusebox MT06B501 50A 6kA 1 pole B CURVE MCB
Product Details
| STANDARD | IEC 61009-1, IEC 61009-2-2 |
| NUMBER OF POLES | 1 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| RATED BREAKING CAPACITY (Icn) | 6000A (6kA) |
| RATED CURRENT (In) | 50 |
| TRIPPING CHARACTERISTICS | B Curve: 3-5In |
| MECHANICAL ENDURANCE | 10,000 |
| PROTECTION DEGREE (IP) | 20 |
| MAXIMUM TERMINAL CAPACITY | 16mm ² |
| RECOMMENDED TIGHTENING TORQUE (Nm) | 2.5 |
| TRIPPING TYPE | Thermal magnetic |
| MOUNTING | 35mm din rail |
| MATERIAL | PA6 (Nylon 6) |
| WEIGHT (1PC) Kg | 0.12 |
