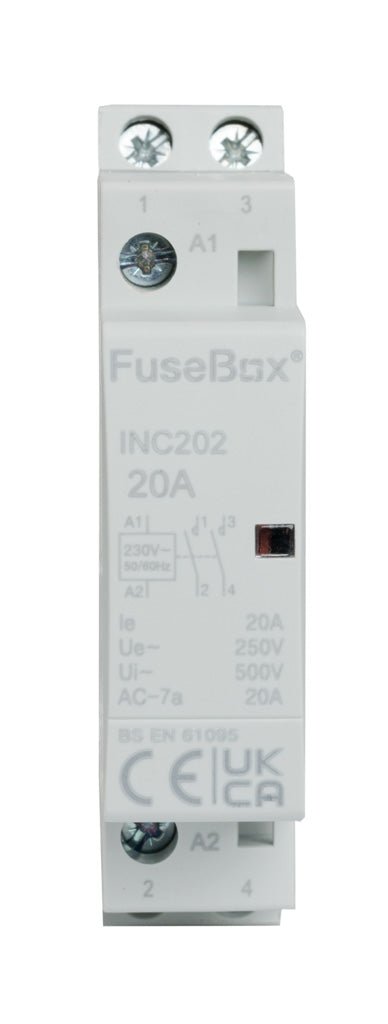

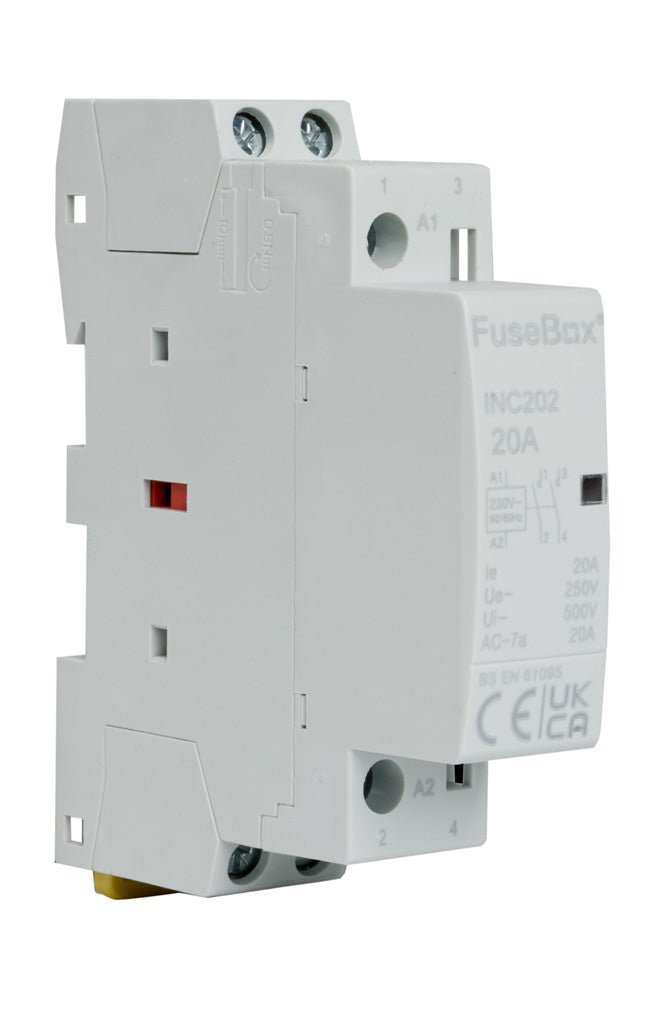

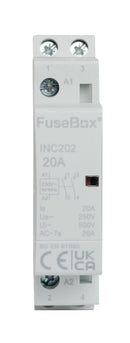

Fusebox INC202 20A 2P Installation Contactor 230V
Product Details
| IP RATING | 20 |
| MATERIAL | PA6 NYLON |
| WEIGHT (1PC) Kg | 0.146 |
| DEVICE WIDTH (mm) | 18 |
|
HEAT DISSIPATION SPACERS (add 18mm to module width) |
2x9mm(18mm) |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| MOUNTING | 35mm DIN RAIL |
| NUMBER OF POLES (N/O) | 2 |
| AC-7a (A) | 20 |
| AC-7b (A) | 6.4 |
| Ith (thermal) A | 20 |
| Holding VA | 2.7 |
| Inrush VA | 9.2 |
| Dissipated W | 1.2 |
| TORQUE SETTING (CONTROL CIRCUIT) A1 A2 | 0.8Nm |
| TORQUE SETTING (POWER CIRCUIT) | 0.8Nm |
| MAXIMUM CABLE CAPACITY (mm ²) | 4 |
Specification
Gtin |
5060523520473 |
Product type |
Mini-Trunking |
