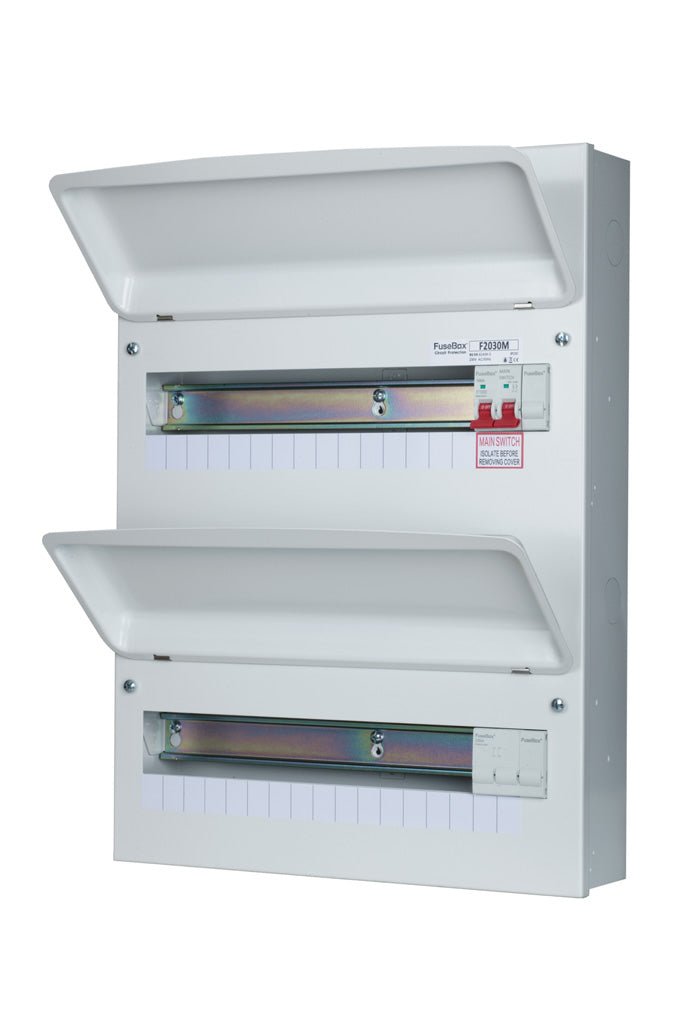

Fusebox F2030M 30-way (15-15) (100A Main Switch)
Product Details
| NUMBER OF USABLE WAYS | 30 |
| PART NUMBER WITH T2 SPD | F2030M |
| WEIGHT (1PC) Kg | 8 |
| DIMENSIONS (HxWxD)mm | 512x378x113 |
| DOUBLE BANK | Y |
| TAIL CLAMP COMPATIBLE (ACCF) | Y |
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm ² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| DEVICE MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
Specification
Gtin |
5060523524075 |
Product type |
Consumer Units |
