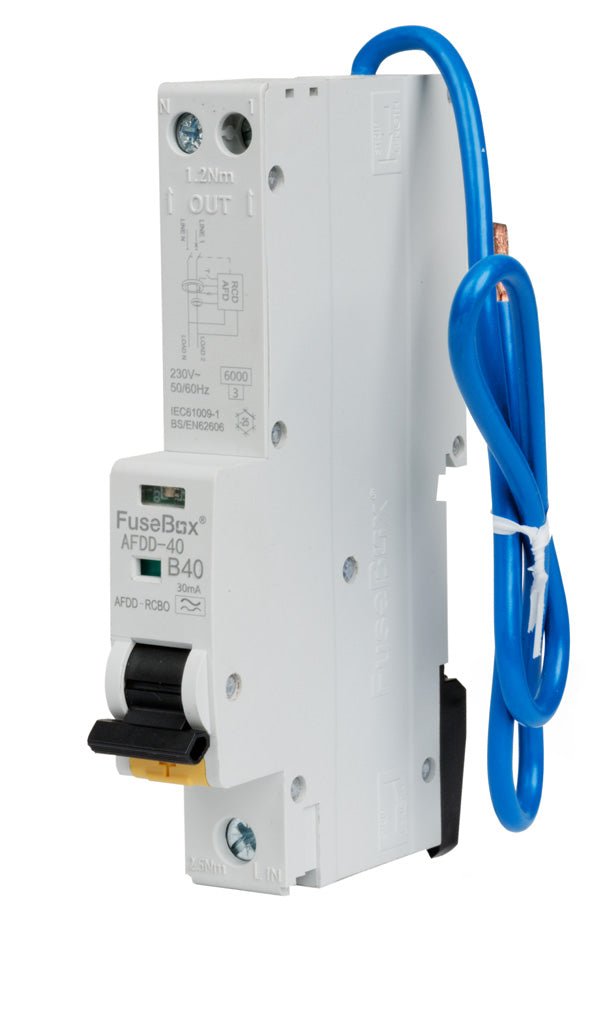

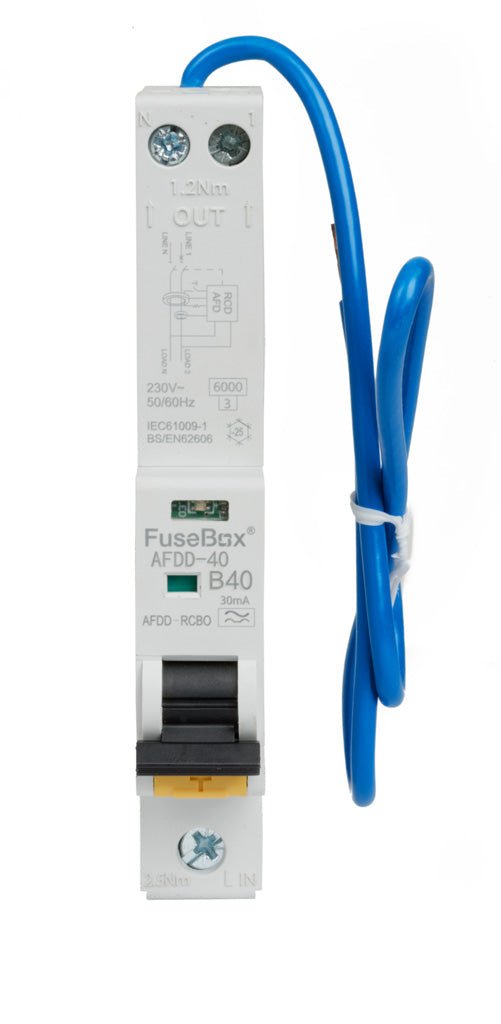

Fusebox AFDD061030B 10A, 2-Pole, 30mA Combined AFDD + RCBO
"
Product Details
- Fully compliant and 3rd party tested to BS EN 62606 / IEC 61009-1
- Short circuit capacity of 6kA with a maximum rating of 40A
- Type A for AC and pulsating DC sensitivity
- Double Pole RCBO 1P+N (switched)
- Single module
- Fit to all FuseBox Consumer Units
- Can replace any Fusebox RCBO with the benefit of ARD protection
- LED fault indication
Technical Details
| STANDARD | IEC 61009-1, BS EN 62606 |
| NUMBER OF POLES | 1P+N (Switched) |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| RATED BREAKING CAPACITY (Icn) | 6000A (6kA) |
| RATED CURRENT (In) | 10 |
| TRIPPING CHARACTERISTICS | B CURVE : 3-5In |
| RESIDUAL CURRENT CHARACTERISTICS | TYPE A (AC AND PULSATING DC UP TO 6mA) |
| RATED RESIDUAL OPERATING CURRENT (IΔn) | 0.03 |
| MECHANICAL ENDURANCE | 10,000 |
| PROTECTION DEGREE (IP) | 20 |
| MAXIMUM TERMINAL CAPACITY | 1-16mm ² IN L / 1-10mm ² OUT N L |
| RECOMMENDED TIGHTENING TORQUE (Nm) | 2.5Nm IN L / 1.2Nm OUT N L |
| FLYING NEUTRAL CABLE LENGTH (mm) | 450 (can be cut to suit) |
| OVERVOLTAGE PROTECTION | >285V |
| MATERIAL | PA6 (Nylon 6) |
| WEIGHT (1PC) Kg | 0.185 |
| INNER CARTON QUANTITY | 1 |
| OUTER CARTON QUANTITY | 60 |
| ENERGY LIMITING CLASS | 3 |
| MOUNTING | 35mm Din rail mountin |
Specification
Gtin |
5060523524464 |
Product type |
Arc Fault Detection Devices |
