Product Details

• 2 programmable zones

• Active end of line monitoring and head removal

• 30 fire detectors per zone

• Unlimited number of call points per zone

• Integral sound alarm button

• 'Class change' facility

• Enable/disable security key

• One man walk test facility

• Volt free fire change over relay

• Volt free fault change over relay

• Individual sounder circuit fault ID

• Individual zone/sounder isolate

• CE certified to EN54 P2/4

• Requires only 1x12v battery

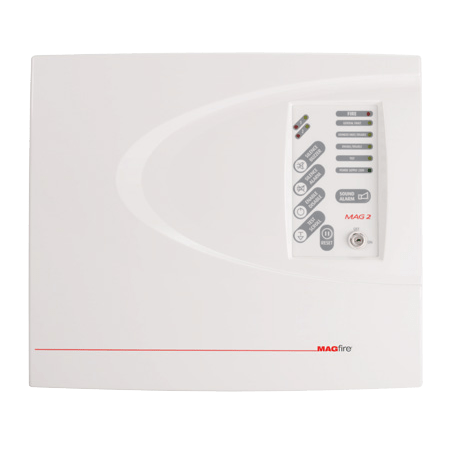

• MAG2P - ABS casing

Product Details

• Max Detectors Per Zone: 30

• Thresholds for Zone Conditions:
  • 0 - 2 mA (Fault condition)
  • 2 - 6 mA (Normal condition)
  • 6 - 110 mA (Fire condition)
  • 110 mA - Short (Fault condition)

• Mains Fail Consumption: 50mA

• Mains Supply: 230 VAC

• Standby Supply: 1 x 7ah 12V S.L.A. Battery

• Power Availability: 0.7 amps

• Sounder 1: 24V (max 300mA fused)

• Sounder 2: 24V (max 300mA fused)

• Fault/Fire Relay: Volt free 500mA @ 24V (max load)

• Auxiliary Output: 24VDC (300mA fused)

• Working Temperature: 0 to 40 ºC

• Storage Temperature: -20 to 60 ºC

• Humidity: 0 - 95%

• Dimensions: 340 x 290 x 100mm

• Weight: 2.1Kg
