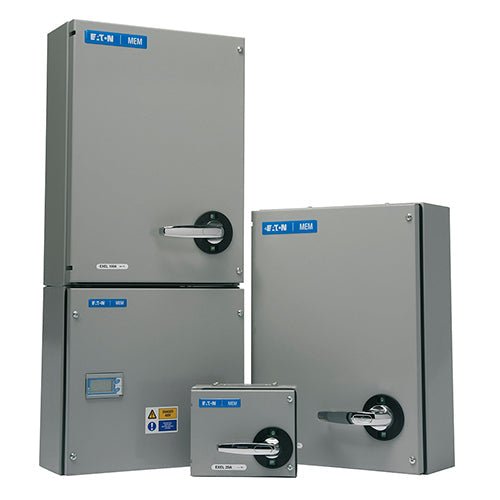

Product Description

• Units have removable moving contact assemblies to facilitate wiring.

• Exel 2 surface-mounting enclosures are fabricated from rust-protected sheet steel with a light grey paint finish.

• Removable blank top and bottom end plates and gasket doors give IP41 protection.

• Chromium-plated front operated handles, with “ON (I) OFF (O)” indication, and internal fixing enabling units to be mounted closely side by side.

• Interiors comprise porcelain bases fitted with non-ferrous conducting components.

Product Details

• Nominal Rating: 63A

• Utilisation category at Ue 415V to BS EN 60947-3 (AC22A): 39A

• Poles: Three poles + Neutral

• Standards: BS EN 60947-3

• Maximum Cable Size: 35mm²
