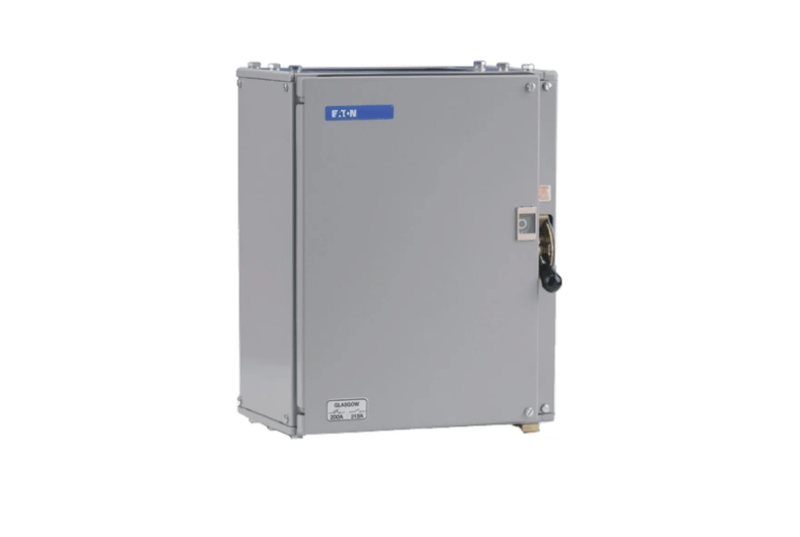

Eaton 103GNL 100A Glasgow Switch Disconnector
Product Description
- Units are fitted with HRC Fuselinks of maximum rating but will accept fuselinks of a lower rating
- Neutral makes first and breaks last
- A Glasgow Fuse Switch-Disconnector can be fitted with copper links to change it into a Switch-disconnector
Product Details
- Nominal Unit: 100A
- Nominal Unit Rating, Ie AC21: 125A
- Poles: Three poles + Neutral
- Standards: BS EN 60947-3
- Copper Switch Links Fitted: 100MLK
- Motor Ratings (kW): 22
- AC23A Ue 415V (HP): 30
Specification
Product type |
Switch & Fusegear |
