Dimplex PLX100E 1000W (1.0kW) Smart Panel Heater
Product Description
The PLX100E is a Lot 20 compliant, modern and efficient electric panel heater. Offering intuitive controls with multiple timers, natural white colour and louvered grille, this heater will fit naturally into any room.
Product Details
| Colour/Finish/Material | Metal chassis - Traffic white (RAL 9016) |
| Controls | Digitally controlled, Electronic Thermostat accurate to (±0.2oC). Sp range (7-30°C) Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day Continuous heat modes: Eco, Manual, Frost Protect. Additional modes: Away, Boost & Setback |
| Heat Output (kW) | 1.0 |
| Heat source | Electric |
| Inlet/Outlet location | Bottom, downward-facing / top, front-facing |

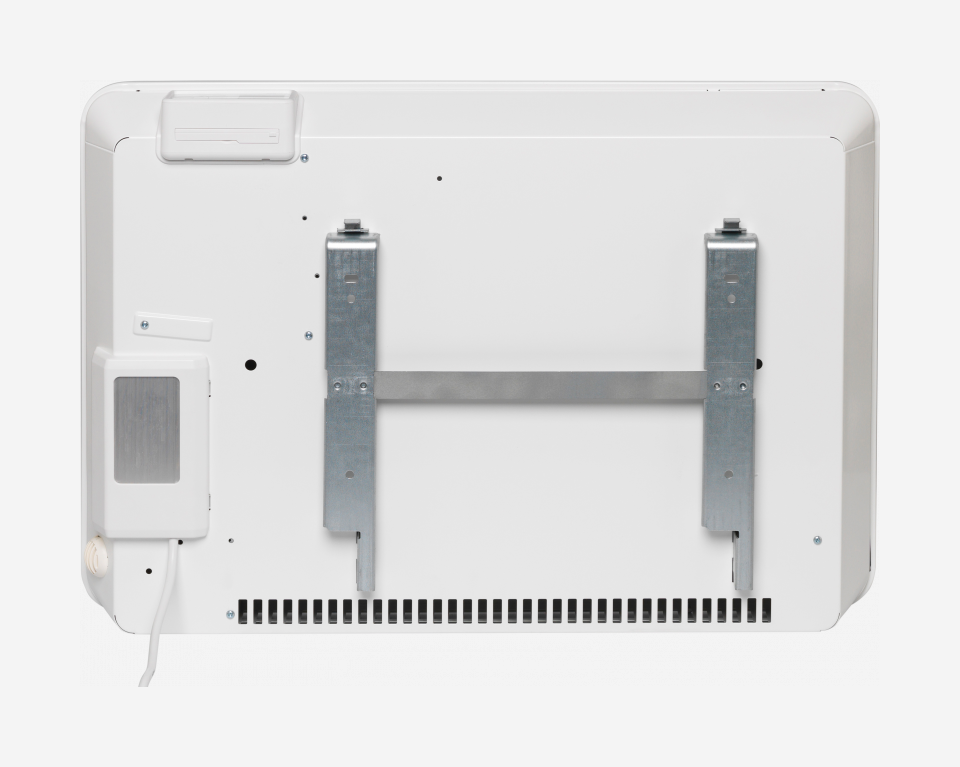

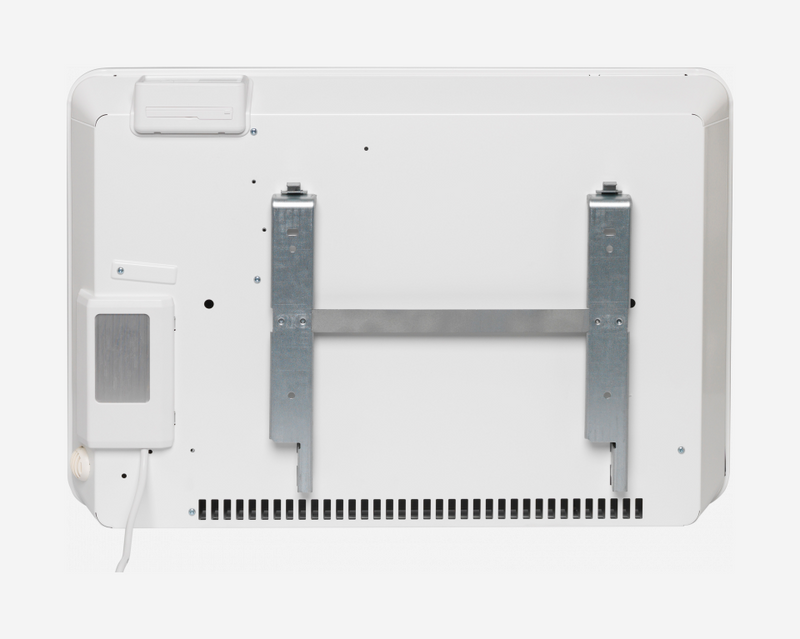

| Installation | H-frame wall bracket for easy fixing |
| IP Rating | IP24 |
| Warranty / Guarantee | 2 Years |
| Thermostat | Yes |
| Product model number | PLX125E |
| Building Information Management (BIM) Link | https://www.nationalbimlibrary.com/en-gb/glen-dimplex-heating-and-ventilation/plxe-panel-heater/?lo=en-GB |
| EAN | 5011139090713 |
| Dimensions | |
|---|---|
| Height (mm) | 430.00 |
| Depth (mm) | 108.00 |
| Width (mm) | 620.00 |
| Weight (kg) | 5.90 |
| Certification | |
|---|---|
| BEAB | Yes |
| CE | Yes |
| Construction | Durable epoxy-polyester powder coated steel casing with louvered forward facing grille Advanced controls with cap-sense technology for total flexibility of heating |
| Cable Exit Point | Bottom Right |
| Cable Length (m) | 1.3 |
| Connection | Three-core cable (Live, Neutral, Earth) |
| Delayed start | Yes |
| Digital timer | Yes |
| Electric supply | ~230/240 |
| Element type | Compact, finned, mineral filled sheathed element |
| Loading/Wattage (kW) | 1.0 |
| Safety Cut Out | Auto re-set cut-out |
| Thermostat Type | Electronic thermostat (±0.2°C ) Overheat detection |
| Timer | Integral 7-day time and temperature adjustment |
